2022-161

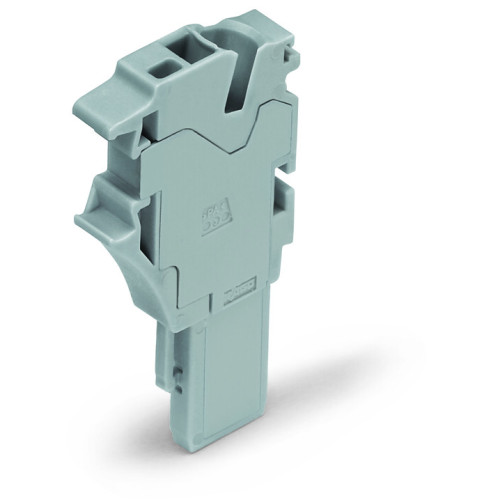

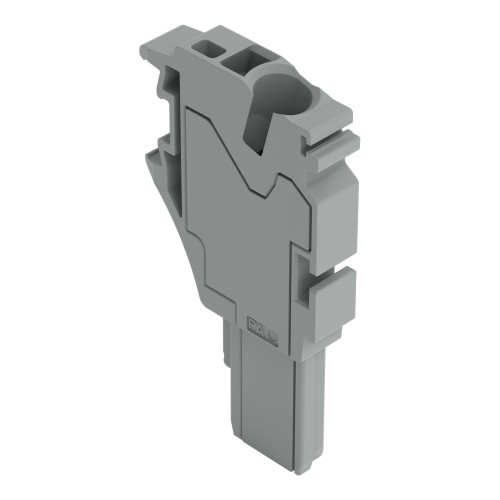

Start module for 1-conductor female connector, Push-in CAGE CLAMP®, 4 mm², gray

Manufacturer's No: 2022-161     Manufacturer: WAGO
Start module for 1-conductor female connector, Push-in CAGE CLAMP®, 4 mm², gray

Availability In Stock

Once added to the cart, you can split this pack for a charge of £16.50

£0.87
List Price £1.16
  • Module for 1-conductor female connector
  • Push-in CAGE CLAMP® technology
  • 4 mm² wire capacity
  • Pin spacing of 5.2 mm
  • 1-pole configuration
  • Integrated end plate
  • Color: gray

Accessories

Ferrule, Sleeve for 0.5 mm² / 20 AWG, insulated, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-241
Price £0.09
Available to order

Ferrule Sleeve for 0.75 mm / AWG 20 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-242
Price £0.09
Available to order

Ferrule Sleeve for 0.75 mm / AWG 20 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-262
Price £0.09
Available to order

Ferrule Sleeve for 1 mm / AWG 18 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-263
Price £0.09
Available to order

Ferrule Sleeve for 1.5 mm / AWG 16 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-244
Price £0.09
Available to order

Ferrule Sleeve for 1.5 mm / AWG 16 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-264
Price £0.09
Available to order

Ferrule Sleeve for 2.5 mm / AWG 14 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-246
Price £0.09
Available to order

Ferrule Sleeve for 2.5 mm / AWG 14 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-266
Price £0.09
Available to order

Ferrule Sleeve for 2.5 mm / AWG 14 insulated electro-tin plated electrolytic copper gastight crimped acc. to DIN 46228, Part 4/09.90

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-286
Price £0.15
Available to order

Insulation stop, 0.25 - 0.5 mm², 5 pieces/strip, light gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2002-171
Price £0.1125
List Price £0.15
Available to order

Locking lever, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2022-152
Price £0.1125
List Price £0.15
Available to order

Locking lever, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2022-151
Price £0.1125
List Price £0.15
In Stock

Locking lever, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2022-142
Price £0.0825
List Price £0.11
Available to order

Insulation stop, 0.75 - 1 mm², 5 pieces/strip, dark gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2002-172
Price £0.1125
List Price £0.15
Available to order

Locking lever, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2022-141
Price £0.11
Available to order


Product

Manufacturer Material ID -
2022-161
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
CN
Minimum Order Quantity -
250
UNSPSC -
39121402

Technical Specification

Drill hole distance centrically -
- Millimetre
Length -
22.4 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
5.2 Millimetre
Height at lowest possible mounting height -
40.5 Millimetre
Connection position -
Above
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.75 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section multi-wired -
0.25 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Depth -
40.5 Millimetre
Halogen free -
Height -
22.4 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
Other
Number of clamp positions per pole -
1
Number of poles -
1
Operating temperature -
105 Degrees celsius
Rated current In -
24 Ampere
Rated voltage -
690 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
5.2 Millimetre
