2059-302/998-403

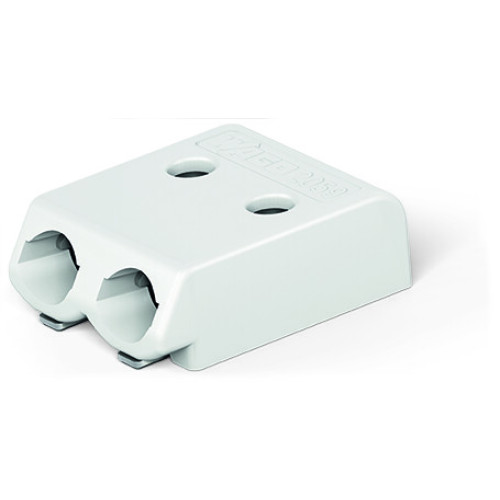

SMD PCB terminal block, 0.5 mm², Pin spacing 3 mm, white

Manufacturer's No: 2059-302/998-403     Manufacturer: WAGO
SMD PCB terminal block, 0.5 mm², Pin spacing 3 mm, white

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£0.45
  • SMD PCB terminal block
  • 2-pole with pin spacing of 3 mm
  • Wire size capacity of 0.5 mm²
  • Features PUSH WIRE® technology
  • Comes in tape-and-reel packaging
  • Color: white

Accessories

Operating tool, made of insulating material, for 2059 Series

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2059-189
Price £0.74
On Request

Board-to-Board Link, Pin spacing 3 mm, 2-pole, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2059-902
Price £0.35
On Request

Board-to-Board Link, Pin spacing 3 mm, 2-pole, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2059-902/018-000
Price £0.35
On Request

Board-to-Board Link, Pin spacing 3 mm, 2-pole, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 2059-902/021-000
Price £0.35
On Request


Product

Manufacturer Material ID -
2059-302/998-403
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
CH
Minimum Order Quantity -
1750
UNSPSC -
39121410

Technical Specification

Drill hole distance centrically -
- Millimetre
Connectable conductor cross section fine-strand with cable end sleeve -
- Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
- Square millimetre
Connectable conductor cross section multi-wired -
- Square millimetre
Length -
7.9 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
5.9 Millimetre
Height at lowest possible mounting height -
2.7 Millimetre
Connection position -
Sideways
Colour -
White
Connectable conductor cross section solid-core -
0.14 Square millimetre
Depth -
7.9 Millimetre
Height -
2.7 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
Other
Number of clamp positions per pole -
1
Number of poles -
2
Operating temperature -
-60 Degrees celsius
Rated current In -
3 Ampere
Rated voltage -
160 Volt
Type of electrical connection 1 -
Plug clamp connection
Type of electrical connection 2 -
Plug clamp connection
Width -
5.9 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£0.45
