232-174

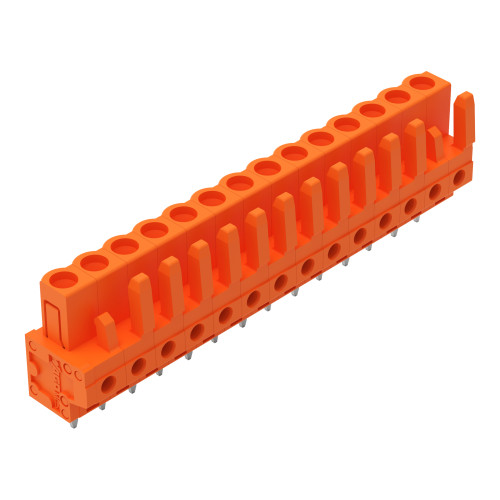

Female Connector, With Straight Solder Pins 14-Pole Orange

Manufacturer's No: 232-174     Manufacturer: WAGO
Female Connector, With Straight Solder Pins 14-Pole Orange

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£5.55
  • THT female header
  • Straight design
  • Pin spacing: 5.08 mm
  • 14-pole configuration
  • Solder pin dimensions: 0.6 x 1.0 mm
  • Color: Orange

Accessories



Product

Manufacturer Material ID -
232-174
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
Minimum Order Quantity -
25
UNSPSC -
39121402

Technical Specification

Diameter connection pin -
- Millimetre
Colour housing -
Orange
Operation temperature -
-60 Degrees celsius
Angle PCB/contact -
90° (upwards vertical)
Connector model -
Free connector
Contact type -
Pin
Housing colour -
Orange
Inflammability class of insulation material acc. with UL94 -
V0
Length pin -
5 Millimetre
Material insulation body -
Thermoplastic
Material of contact surface -
Tin
Modular spacing connections -
5.08 Millimetre
Modular spacing contacts -
5.08 Millimetre
Number of plug-in contact rows -
1
Number of poles -
14
Operating temperature -
-60 Degrees celsius
Over voltage category -
III
Pollution degree -
2
Rated current In -
12 Ampere
Rated surge voltage -
4 Kilovolt
Rated voltage -
320 Volt
Suitable for PCB thickness -
1.5 Millimetre
Type of banding -
None
Type of connection -
Flexible PCB-connector
Type of electric connection -
Soldering connection
Type of fastening -
Solder
Type of PCB fastening -
Connecting contact

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£5.55
