237-146

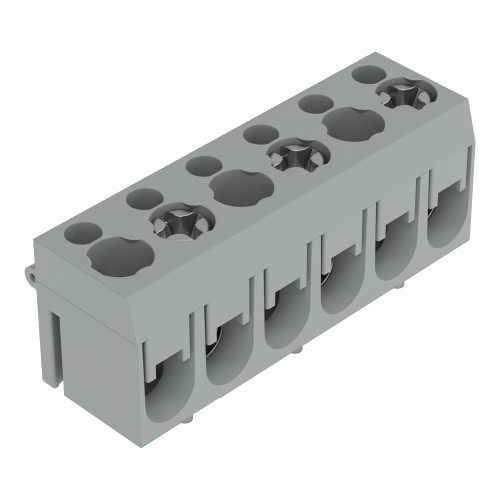

PCB Terminal Block, 2.5 mm Pin Spacing 5 mm 6-Pole Gray

Manufacturer's No: 237-146     Manufacturer: WAGO
PCB Terminal Block, 2.5 mm Pin Spacing 5 mm 6-Pole Gray

Availability Back Order

POA
  • PCB terminal block
  • 3-pole
  • Wire size: 2.5 mm²
  • Pin spacing: 10 mm
  • Color: Gray


Product

Manufacturer Material ID -
237-146
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
IN
Minimum Order Quantity -
100
UNSPSC -
39121410

Technical Specification

Connectable conductor cross section fine-strand with cable end sleeve -
- Square millimetre
Degree of protection (IP), mounted -
UN
Colour housing -
Grey
Operation temperature -
105 Degrees celsius
Angle PCB/conductor connection -
0°/180° (horizontal)
Connectable conductor cross section fine-strand without cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section multi-wired -
0.5 Square millimetre
Connectable conductor cross section solid-core -
0.5 Square millimetre
Connection type conductor -
Screw connection
Connection type PCB -
Soldering connection
Diameter connection pin -
1 Millimetre
Height -
11 Millimetre
Housing colour -
Grey
Inflammability class of insulation material acc. with UL94 -
V0
Length pin -
4.5 Millimetre
Material connection surface -
Tin
Material insulation body -
Thermoplastic
Modular spacing connections -
10 Millimetre
Number of electrical connections -
3
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Over voltage category -
III
Pollution degree -
2
Rated current In -
16 Ampere
Rated surge voltage -
2.5 Kilovolt
Rated voltage -
800 Volt
Type of banding -
None
Type of fastening -
Solder
Type of PCB fastening -
Connecting contact

Availability Back Order

POA
