243-724

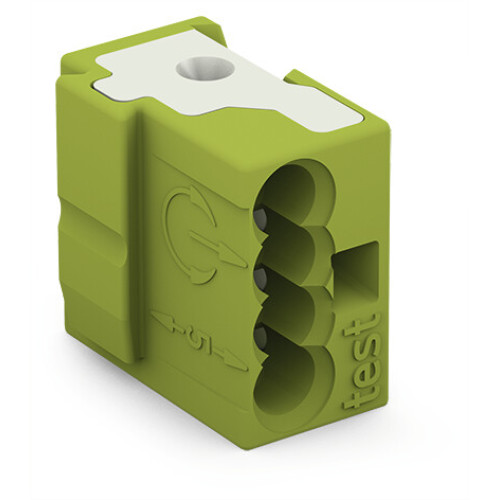

4-conductor female plug, PUSH WIRE®, 0.8 mm Ø, light green

Manufacturer's No: 243-724     Manufacturer: WAGO
4-conductor female plug, PUSH WIRE®, 0.8 mm Ø, light green

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£0.23
  • 4-conductor female plug
  • PUSH WIRE® technology
  • 0.8 mm Ø pin
  • Pin spacing of 5.75 mm
  • 1-pole configuration
  • Designed for individual solder pins
  • Light green color

Accessories

THT single pin, silver-colored

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 243-131
Price £0.04
On Request

Marking strips, as a DIN A4 sheet, MARKED, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 210-332/575-103
Price POA
On Request


Product

Manufacturer Material ID -
243-724
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Minimum Order Quantity -
400
UNSPSC -
39121410

Technical Specification

Connectable conductor cross section fine-strand with cable end sleeve -
- Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
- Square millimetre
Connectable conductor cross section multi-wired -
- Square millimetre
Degree of protection (IP), mounted -
UN
Colour housing -
Other
Operation temperature -
-60 Degrees celsius
Angle PCB/conductor connection -
0°/180° (horizontal)
Connectable conductor cross section solid-core -
0.5 Square millimetre
Connection type conductor -
Plug clamp connection
Connection type PCB -
Soldering connection
Diameter connection pin -
1 Millimetre
Height -
10 Millimetre
Housing colour -
Other
Inflammability class of insulation material acc. with UL94 -
V0
Length pin -
4.5 Millimetre
Material connection surface -
Tin
Material insulation body -
Thermoplastic
Modular spacing connections -
5.75 Millimetre
Number of electrical connections -
4
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Over voltage category -
III
Pollution degree -
2
Rated current In -
6 Ampere
Rated surge voltage -
4 Kilovolt
Rated voltage -
320 Volt
Type of banding -
None
Type of fastening -
Solder
Type of PCB fastening -
Connecting contact
