285-1187

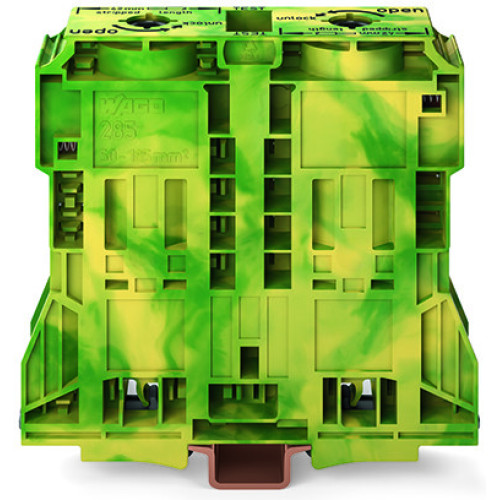

2-conductor ground terminal block, 120 mm², lateral marker slots, green-yellow

Manufacturer's No: 285-1187     Manufacturer: WAGO
2-conductor ground terminal block, 120 mm², lateral marker slots, green-yellow

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£66.88
  • 2-conductor ground terminal block
  • 120 mm² capacity
  • Lateral marker slots
  • Compatible with DIN 35 x 15 rail
  • 2.3 mm thickness
  • Made of copper
  • POWER CAGE CLAMP technology
  • Color: green-yellow

Accessories

WMB marking card, as card, not stretchable, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501
Price £3.01
On Request

Jumper, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 285-1171
Price £16.38
On Request

WMB marking card, as card, not stretchable, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-002
Price £4.15
On Request

WMB marking card, as card, not stretchable, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-005
Price £4.15
On Request

WMB marking card, as card, not stretchable, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-006
Price £4.15
On Request

WMB marking card, as card, not stretchable, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-007
Price £4.15
On Request

WMB marking card, as card, not stretchable, violet

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-024
Price £4.15
On Request

WMB marking card, as card, not stretchable, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-012
Price £4.15
On Request

WMB marking card, as card, not stretchable, light green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-017
Price £4.15
On Request

WMB marking card, as card, not stretchable, green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-023
Price £4.15
On Request

Finger guard, touchproof cover protects unused conductor entries and jumper slots, for 185 mm² high-current terminal blocks, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 285-1178
Price £0.68
On Request

Protective warning marker, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 285-1176
Price £0.31
On Request


Product

Manufacturer Material ID -
285-1187
Net Weight -
0.65kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Minimum Order Quantity -
5
UNSPSC -
39121410

Technical Specification

Length -
130 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
32 Millimetre
Height at lowest possible mounting height -
116 Millimetre
Connection position -
Sideways
Colour -
Green/yellow
Connectable conductor cross section fine-strand with cable end sleeve -
50 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
50 Square millimetre
Connectable conductor cross section multi-wired -
50 Square millimetre
Connectable conductor cross section solid-core -
50 Square millimetre
Depth -
116 Millimetre
Height -
130 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
105 Degrees celsius
PEN function possible -
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
32 Millimetre
