285-139

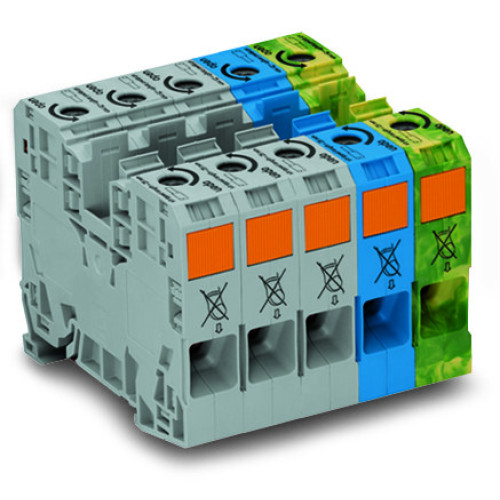

Three Phase Set, With 35 mm High-Current Tbs

Manufacturer's No: 285-139     Manufacturer: WAGO
Three Phase Set, With 35 mm High-Current Tbs

Availability Back Order

£39.30
  • Three-phase set
  • 35 mm² high-current terminal blocks
  • Compatible only with DIN 35 x 15 rail
  • Copper material
  • POWER CAGE CLAMP technology
  • Color: gray/blue/green-yellow

Accessories

Power Tap, For 35 mm High-Current Tbs Module Width 8 mm Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 285-427
Price £2.59
Back Order

Power tap; with 500 mm cable; for 16 mm (283/783 Series) and 35 mm

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 283-407
Price £3.99
Back Order

Screwless End Stop, 14 mm Wide Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 249-197
Price £3.61
Back Order

Pivoting Group Marker Carrier, Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 249-105
Price £0.24
Back Order

Ferrule, Sleeve For 35 mm / Awg 2 Uninsulated

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-414
Price £0.40
Back Order

Marker Carrier, For Power Cage Clamp 35/50/95 mm Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 285-442
Price £0.25
Back Order

Test Plug Adapter, 11.6 mm Wide For Test Plug 4 mm Ø Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 283-404
Price £2.00
Back Order


Product

Manufacturer Material ID -
285-139
Net Weight -
0.43kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121410

Technical Specification

Drill hole distance centrically -
- Millimetre
Length -
86 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
125 Millimetre
Height at lowest possible mounting height -
63 Millimetre
Connection position -
Sideways
Colour -
Multi colour
Connectable conductor cross section fine-strand with cable end sleeve -
6 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
6 Square millimetre
Connectable conductor cross section multi-wired -
6 Square millimetre
Connectable conductor cross section solid-core -
6 Square millimetre
Depth -
63 Millimetre
Halogen free -
Height -
86 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per pole -
2
Number of poles -
5
Operating temperature -
105 Degrees celsius
Rated current In -
125 Ampere
Rated voltage -
1000 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
80 Millimetre
