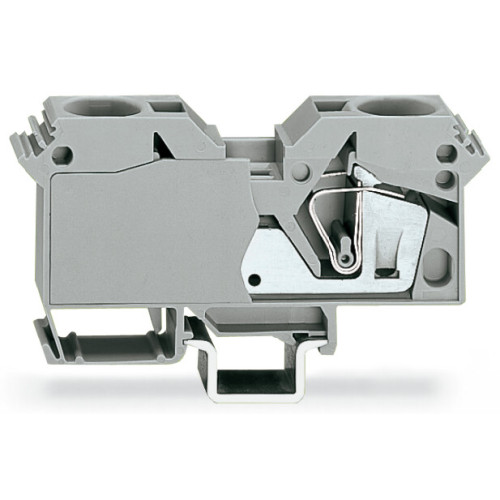

285-601

2-conductor through terminal block, 35 mm², lateral marker slots, gray

Manufacturer's No: 285-601     Manufacturer: WAGO
2-conductor through terminal block, 35 mm², lateral marker slots, gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£18.23
  • Terminal block for DIN 35 x 15 rail
  • 2-conductor with CAGE CLAMP®
  • 35.00 mm² capacity
  • Gray color
  • Lateral marker slots included

Accessories

WMB marking card, as card, not stretchable, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501
Price £3.01
On Request

WMB marking card, as card, not stretchable, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-002
Price £4.15
On Request

WMB marking card, as card, not stretchable, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-005
Price £4.15
On Request

WMB marking card, as card, not stretchable, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-006
Price £4.15
On Request

WMB marking card, as card, not stretchable, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-007
Price £4.15
On Request

WMB marking card, as card, not stretchable, violet

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-024
Price £4.15
On Request

Group marker carrier, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 249-105
Price £0.24
On Request

Separator plate, 2 mm thick, oversized, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 285-327
Price £0.77
On Request

Ferrule, Sleeve for 35 mm² / AWG 2, uninsulated, silver-colored

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-414
Price £0.40
On Request

Mounting carrier, for isolated mounting on DIN 35 rails, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 209-106
Price £0.33
On Request

Jumper, insulated, yellow-green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 283-422
Price £1.28
On Request

Jumper, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 283-402
Price £1.30
On Request

Test plug adapter, 11.6 mm wide, for 4 mm Ø test plugs, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 283-404
Price £2.00
On Request

Separator plate, 2 mm thick, oversized, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 285-337
Price £0.76
On Request

WMB marking card, as card, not stretchable, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-012
Price £4.15
On Request

WMB marking card, as card, not stretchable, light green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-017
Price £4.15
On Request

WMB marking card, as card, not stretchable, green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-023
Price £4.15
On Request

Ferrule, Sleeve for 25 mm² / AWG 4, uninsulated, silver-colored

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-413
Price POA
On Request


Product

Manufacturer Material ID -
285-601
Net Weight -
0.13kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Minimum Order Quantity -
15
UNSPSC -
39121410

Technical Specification

Connectable conductor cross section fine-strand with cable end sleeve -
- Square millimetre
Length -
115.5 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
16 Millimetre
Height at lowest possible mounting height -
52.5 Millimetre
Connection position -
Above
Colour -
Grey
Connectable conductor cross section fine-strand without cable end sleeve -
6 Square millimetre
Connectable conductor cross section multi-wired -
6 Square millimetre
Connectable conductor cross section solid-core -
6 Square millimetre
Depth -
52.5 Millimetre
Height -
115.5 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
125 Ampere
Rated voltage -
800 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
16 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£18.23
