285-634

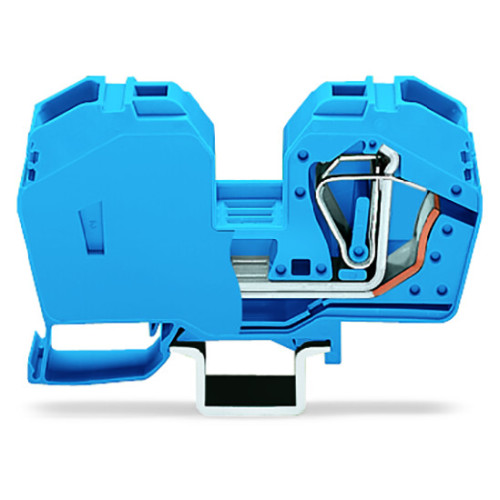

2-Conductor Through Terminal Block, With Integrated End Plate Blue

Manufacturer's No: 285-634     Manufacturer: WAGO
2-Conductor Through Terminal Block, With Integrated End Plate Blue

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£8.84
  • 2-conductor through terminal block
  • 35 mm² capacity
  • Integrated end plate
  • Side and center marking
  • Compatible only with DIN 35 x 15 rail
  • CAGE CLAMP® technology
  • Color: Blue

Accessories

Miniature WSB Quick Marking System, Plain Marker Width 5 mm

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 248-501
Price £2.82
Back Order

Power tap; with 500 mm cable; for 16 mm (283/783 Series) and 35 mm

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 283-407
Price £3.99
Back Order

Miniature WSB Quick Marking System, Plain Marker Width 5 mm Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 248-501/000-007
Price £3.96
Back Order

Ferrule, Sleeve For 35 mm / Awg 2 Uninsulated

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-414
Price £0.40
Back Order

Miniature WSB Quick Marking System, Plain Marker Width 5 mm Blue

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 248-501/000-006
Price £3.96
Back Order

Miniature WSB Quick Marking System, Plain Marker Width 5 mm Red

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 248-501/000-005
Price £3.96
Back Order

Miniature WSB Quick Marking System, Plain Marker Width 5 mm Green

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 248-501/000-023
Price £3.96
Back Order

Step-Down Jumper, Insulated From 16 mm To 4 mm Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 283-414
Price £1.67
Back Order

Cover Carrier, Type 2 Incl. Screws With Nut Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 709-168
Price £1.92
Back Order


Product

Manufacturer Material ID -
285-634
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
Minimum Order Quantity -
15
UNSPSC -
39121410

Technical Specification

Connectable conductor cross section fine-strand with cable end sleeve -
- Square millimetre
Length -
100 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
16 Millimetre
Height at lowest possible mounting height -
53 Millimetre
Connection position -
Above
Colour -
Blue
Connectable conductor cross section fine-strand without cable end sleeve -
6 Square millimetre
Connectable conductor cross section multi-wired -
6 Square millimetre
Connectable conductor cross section solid-core -
6 Square millimetre
Depth -
53 Millimetre
Height -
100 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
125 Ampere
Rated voltage -
1000 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
16 Millimetre

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£8.84
