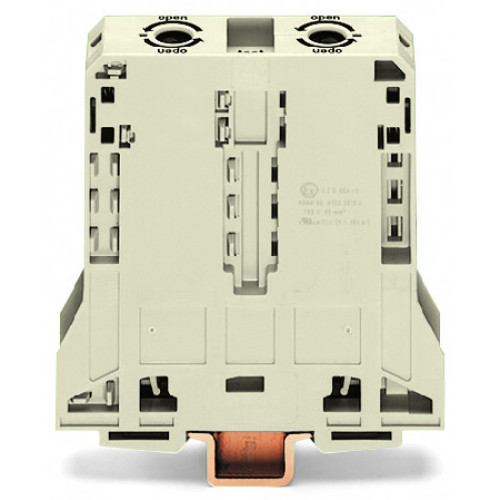

285-995

2-conductor through terminal block, 95 mm², suitable for Ex e II applications, light gray

Manufacturer's No: 285-995     Manufacturer: WAGO
2-conductor through terminal block, 95 mm², suitable for Ex e II applications, light gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£26.73
  • Terminal block for 2 conductors
  • Conductor size: 95 mm²
  • Suitable for Ex e II applications
  • Lateral marker slots
  • Compatible with DIN 35 x 15 rail
  • Features POWER CAGE CLAMP technology
  • Color: Light gray

Accessories

Power tap, for 95 mm² high-current tbs, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 285-407
Price £2.71
On Request

Jumper, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 285-495
Price £6.50
On Request

WMB marking card, as card, not stretchable, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501
Price £3.01
On Request

WMB marking card, as card, not stretchable, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-002
Price £4.15
On Request

WMB marking card, as card, not stretchable, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-005
Price £4.15
On Request

WMB marking card, as card, not stretchable, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-006
Price £4.15
On Request

WMB marking card, as card, not stretchable, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-007
Price £4.15
On Request

WMB marking card, as card, not stretchable, violet

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-024
Price £4.15
On Request

Group marker carrier, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 249-105
Price £0.24
On Request

Adaptor, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 285-442
Price £0.25
On Request

WMB marking card, as card, not stretchable, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-012
Price £4.15
On Request

WMB marking card, as card, not stretchable, light green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-017
Price £4.15
On Request

WMB marking card, as card, not stretchable, green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 793-501/000-023
Price £4.15
On Request

Ferrule, Sleeve for 50 mm² / AWG 1, uninsulated

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-435
Price POA
On Request

Protective warning marker, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 285-175
Price £0.38
On Request


Product

Manufacturer Material ID -
285-995
Net Weight -
0.26kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
PL
Minimum Order Quantity -
5
UNSPSC -
39121410

Technical Specification

Length -
107 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
25 Millimetre
Height at lowest possible mounting height -
101 Millimetre
Connection position -
Sideways
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
25 Square millimetre
Connectable conductor cross section multi-wired -
25 Square millimetre
Connectable conductor cross section solid-core -
25 Square millimetre
Depth -
101 Millimetre
Explosion-tested version 'Ex e' -
Height -
107 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
195 Ampere
Rated voltage -
750 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
25 Millimetre
