286-640/004-000

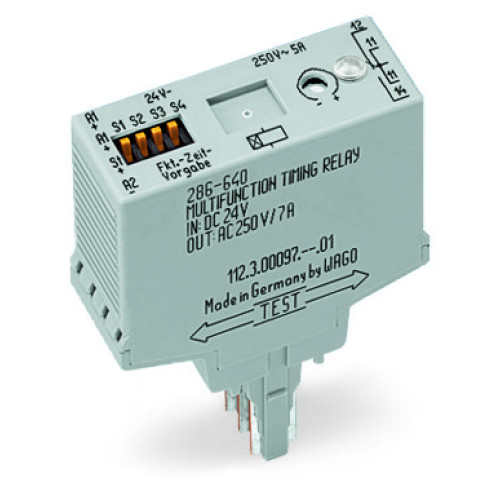

Timer relay module, Nominal input voltage: 24 VDC, Limiting continuous current: 5 A, gray

Manufacturer's No: 286-640/004-000     Manufacturer: WAGO
Timer relay module, Nominal input voltage: 24 VDC, Limiting continuous current: 5 A, gray

Availability Back Order

£113.13
  • Timer relay module
  • Nominal input voltage: 24 VDC
  • Limiting continuous current: 5 A
  • Railway application
  • Multifunctional
  • Red status indicator
  • Module width: 20 mm
  • Color: Gray

Accessories

WSB marking card, as card, not stretchable, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 209-701
Price £2.87
Back Order


Product

Manufacturer Material ID -
286-640/004-000
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
24 Volt
Depth -
50 Millimetre
Function floating contact on energization -
Height -
82.5 Millimetre
Nominal current -
5 Ampere
Number of outputs, delayed, change-over contact -
1
Number of outputs, delayed, normally closed contact -
0
Number of outputs, delayed, normally open contact -
0
Number of outputs, undelayed, change-over contact -
0
Number of outputs, undelayed, normally closed contact -
0
Number of outputs, undelayed, normally open contact -
0
Rated control supply voltage at DC -
24 Volt
Time range -
0.3 Second
Type of electric connection -
Plug-in connection
Voltage type for actuating -
DC
Width -
20 Millimetre
