288-895

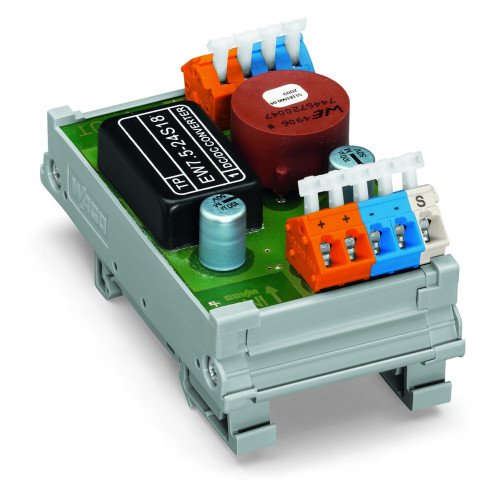

DC/DC Converter, 24 VDC input voltage, 18 VDC output voltage

Manufacturer's No: 288-895     Manufacturer: WAGO
DC/DC Converter, 24 VDC input voltage, 18 VDC output voltage

Availability Back Order

£245.25
  • DC/DC Converter
  • Input Voltage: 24 VDC
  • Output Voltage: 18 VDC
  • Output Current: 0.4 A
  • Conductor Size: 2.50 mm²

Accessories



Product

Manufacturer Material ID -
288-895
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85044082
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
32121704

Technical Specification

Built-in height -
- Millimetre
Power consumption -
- Voltampere
Built-in width -
- Millimetre
Power output -
- Watt
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Rated supply voltage at AC 50 Hz -
- Volt
Rated supply voltage at AC 60 Hz -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
1st secondary output voltage -
18 Volt
Degree of protection (IP rating) -
IP20
Depth -
85 Millimetre
Height -
85 Millimetre
Max. output current 1 -
0.4 Ampere
Nominal value output current 1 -
0.4 Ampere
Nominal value output voltage 1 -
18 Volt
Rail mounting possible -
Rated supply voltage at DC -
19 Volt
Short-circuit-proof -
Stabilized -
Type of electric connection -
Spring clamp connection
Voltage type of supply voltage -
DC
Width -
50 Millimetre
Width in number of modular spacings -
3
