2CDS284001R0577

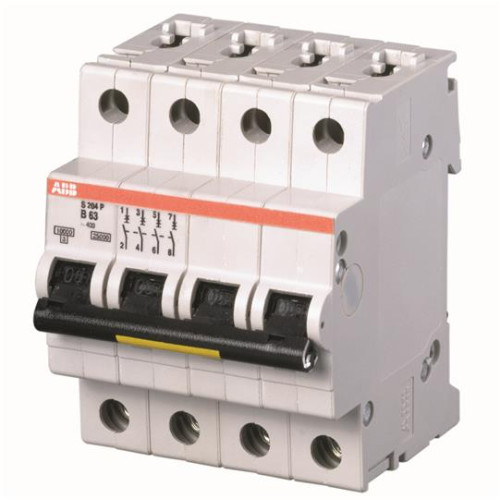

S204P-K50 Miniature Circuit Breaker K-Char.,15kA,50A,4P

Manufacturer's No: S204PK50     Manufacturer: ABB
S204P-K50 Miniature Circuit Breaker K-Char.,15kA,50A,4P

Availability On Request

POA

This product has been superseded by

2CDS384001R0577

Please check compatibility before purchasing.

  • Miniature Circuit Breaker K-Char.
  • 15kA breaking capacity
  • 50A rated current
  • 4P configuration
  • Current limiting design
  • Delayed thermal tripping mechanism for overload protection
  • Electromechanic tripping mechanism for short circuit protection
  • Available in different characteristics: B, C, D, K, Z
  • Configurations: 1P, 1P+N, 2P, 3P, 3P+N, 4P
  • Breaking capacities up to 25kA at 230/400V AC

Read more

  • Rated currents up to 63A
  • Complies with IEC/EN 60898-1, IEC/EN 609 47-2, UL1077, and CSA 22.2 No. 235 standards
  • Suitable for residential, commercial, and industrial applications
  • Bottom-fitting auxiliary contact available for space-saving (50% space saved)


Product

Manufacturer Material ID -
S204PK50
Net Weight -
0.56kg

Additional Product Information

Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Built-in depth -
69 Millimetre
Release characteristic -
K
Degree of protection (IP) -
IP20
Voltage type -
AC
Recess depth -
69 Millimetre
Rated current -
50 Ampere
Rated voltage -
400 Volt
Frequency -
50 Hertz
Tripping characteristic (type/curve) -
K
Rated insulation voltage Ui -
440 Volt
Current limiting class -
3
Over voltage category -
3
Pollution degree -
3
Width in number of modular spacings -
4
Degree of protection (IP rating) -
IP20
Number of protected poles -
4
Connectable conductor cross section solid-core -
0.75 Square millimetre
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Ambient temperature during operating -
-25 Degrees celsius
Additional equipment possible -
Number of poles (total) -
4
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
12.5 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
12.5 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
25 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
15 kiloampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
ABB

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

2CDS384001R0577

Please check compatibility before purchasing.
