2CDS381001R0044

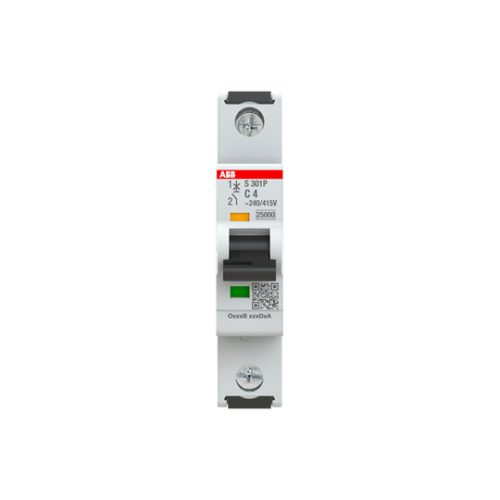

S301P-C4 Miniature Circuit Breaker - 1P - C - 4 A

Manufacturer's No: S301P-C4     Manufacturer: ABB
S301P-C4 Miniature Circuit Breaker - 1P - C - 4 A

Availability On Request

£40.22
  • Miniature Circuit Breaker (MCB) from the S301P-C4 series
  • 1 Pole (1P)
  • Current rating: 4 Amps (4 A)
  • Provides protection against overload and short circuits in industrial installations
  • Manufactured according to international IEC and UL standards


Product

Manufacturer Material ID -
S301P-C4
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
UNSPSC -
39121601

Technical Specification

Additional equipment possible -
Ambient temperature during operating -
-40 Degrees celsius
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Number of poles (total) -
1
Number of protected poles -
1
Over voltage category -
4
Pollution degree -
3
Power loss -
1.4 Watt
Rated current -
4 Ampere
Rated impulse-withstand voltage (Uimp) -
6 Kilovolt
Rated insulation voltage Ui -
500 Volt
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
100 kiloampere
Rated voltage -
240 Volt
Recess depth -
69 Millimetre
Tripping characteristic (type/curve) -
C
Voltage type -
Other
Width in number of modular spacings -
1
ABB

Availability On Request

£40.22
