3KC04360PE000AA0

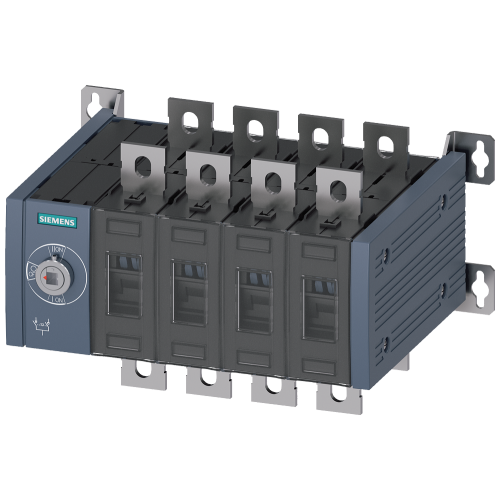

SENTRON, transfer switching equipment 3KC, manually operated, MTSE, size: 3, 4-pole, Iu: 200 A, Ue A

Manufacturer's No: 3KC0436-0PE00-0AA0     Manufacturer: Siemens
SENTRON, transfer switching equipment 3KC, manually operated, MTSE, size: 3, 4-pole, Iu: 200 A, Ue A

View 3D

Availability Back Order

£572.53
  • Product: SENTRON Transfer Switching Equipment 3KC
  • Model: MTSE
  • Operation: Manually operated
  • Size: 3, 4-pole
  • Rated Operational Current: Iu 200 A
  • Rated Operational Voltage: Ue AC 415 V
  • Rated Ultimate Short-Circuit Breaking Capacity at 415 V: Ie AC-33 B 200 A
  • Rated Operational Current at 690 V: Ie AC-23 A 200 A
  • Mounting: Screw mounting
  • Operating Mechanism: Front-operated at the left end

Read more

  • Handle: Not included
  • Busbar Connection

Selectable mandatory product

Accessories



Product

Manufacturer Material ID -
3KC0436-0PE00-0AA0
Net Weight -
7.93kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CN
Export Control Regulations -
N / N
UNSPSC -
39122216

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Rated operating voltage -
- Volt
Conditioned rated short-circuit current Iq -
- kiloampere
Number of switches -
-
Switching power at 400 V -
- Kilowatt
Type of control element -
None
Device construction -
Built-in device fixed built-in technique
Degree of protection (NEMA) -
Other
Colour control element -
Other
Degree of protection (IP), front side -
IP00
Max. rated operation voltage Ue AC -
415 Volt
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
12
Number of auxiliary contacts as normally open contact -
12
Number of poles -
4
Rated operation power at AC-23, 400 V -
110 Kilowatt
Rated permanent current at AC-21, 400 V -
200 Ampere
Rated permanent current at AC-23, 400 V -
200 Ampere
Rated permanent current Iu -
200 Ampere
Rated short-time withstand current lcw -
13 kiloampere
Type of electrical connection of main circuit -
Rail connection
Version as emergency stop installation -
Version as main switch -
Version as maintenance-/service switch -
Version as safety switch -

Availability Back Order

£572.53
