3KC34322AA220AA3

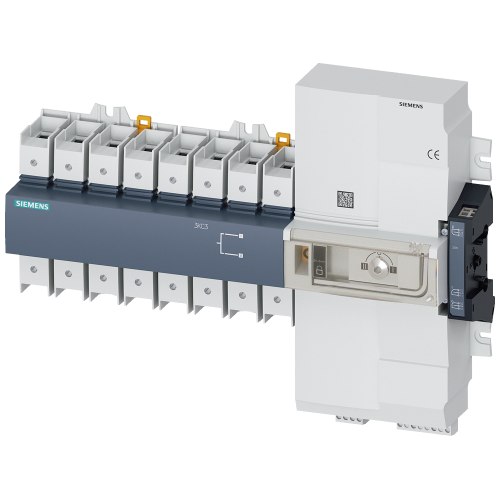

SENTRON, 3KC transfer switching equipment, remotely operated, RTSE, 4-pole, Iu: 125 A

Manufacturer's No: 3KC3432-2AA22-0AA3     Manufacturer: Siemens
SENTRON, 3KC transfer switching equipment, remotely operated, RTSE, 4-pole, Iu: 125 A

Availability On Request

£1,119.39
  • Product: SENTRON Transfer Switching Equipment 3KC
  • Model: RTSE
  • Configuration: 4-pole
  • Remote operation
  • Rated Operational Current (Iu): 125 A
  • Rated Operational Voltage (Ue AC): 415 V
  • Rated Current (Ie) at AC-33 B, 415 V: 125 A
  • Rated Current (Ie) at AC-23 A, 690 V: 80 A
  • Mounting: Screw and standard mounting rail on 35 mm
  • Operating Mechanism: Motorized

Read more

  • Handle: Long handle on the right end
  • Terminal: Box terminal

Selectable mandatory product

Accessories



Product

Manufacturer Material ID -
3KC3432-2AA22-0AA3
Net Weight -
4.23kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
TN
RoHs Compliance -
Yes
UNSPSC -
39121521

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Conditioned rated short-circuit current Iq -
- kiloampere
Number of switches -
-
Switching power at 400 V -
- Kilowatt
Device construction -
Built-in device fixed built-in technique
Degree of protection (NEMA) -
Other
Colour control element -
Black
Degree of protection (IP), front side -
IP00
Interlockable -
Max. rated operation voltage Ue AC -
415 Volt
Motor drive integrated -
Number of auxiliary contacts as change-over contact -
3
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Rated operating voltage -
176 Volt
Rated operation power at AC-23, 400 V -
55 Kilowatt
Rated permanent current at AC-21, 400 V -
125 Ampere
Rated permanent current at AC-23, 400 V -
125 Ampere
Rated permanent current Iu -
125 Ampere
Rated short-time withstand current lcw -
4 kiloampere
Suitable for distribution board installation -
Suitable for floor mounting -
Type of control element -
Long turning handle
Type of electrical connection of main circuit -
Frame clamp
Version as main switch -
Version as maintenance-/service switch -

Availability On Request

£1,119.39
