3KC44380CA210AA3

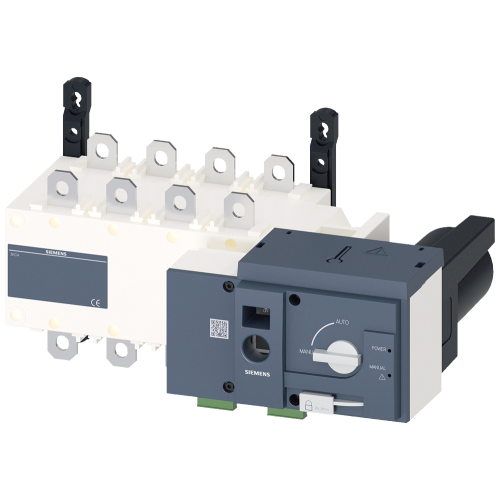

SENTRON, transfer switching equipment 3KC, remotely operated, RTSE, 4-pole, Iu: 250 A, Ue AC: 415 V,

Manufacturer's No: 3KC4438-0CA21-0AA3     Manufacturer: Siemens
SENTRON, transfer switching equipment 3KC, remotely operated, RTSE, 4-pole, Iu: 250 A, Ue AC: 415 V,

Availability On Request

£2,538.33
  • Transfer switching equipment 3KC
  • Remotely operated
  • RTSE, 4-pole
  • Rated operational current (Iu): 250 A
  • Rated operational voltage (Ue AC): 415 V
  • Rated operational current (Ie) at AC-33 B, 415 V: 200 A
  • Rated operational current (Ie) at AC-23 A, 690 V: 125 A
  • Screw mounting
  • Motorized operating mechanism
  • Long handle for operation

Read more

  • Busbar connection

Selectable mandatory product

Accessories



Product

Manufacturer Material ID -
3KC4438-0CA21-0AA3
Net Weight -
10.40kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
TN
Export Control Regulations -
N / N
UNSPSC -
39122216

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Conditioned rated short-circuit current Iq -
- kiloampere
Number of switches -
-
Rated short-time withstand current lcw -
- kiloampere
Switching power at 400 V -
- Kilowatt
Device construction -
Built-in device fixed built-in technique
Degree of protection (NEMA) -
Other
Colour control element -
Black
Degree of protection (IP), front side -
IP00
Interlockable -
Max. rated operation voltage Ue AC -
415 Volt
Motor drive integrated -
Number of auxiliary contacts as change-over contact -
4
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Rated operating voltage -
166 Volt
Rated operation power at AC-23, 400 V -
110 Kilowatt
Rated permanent current at AC-21, 400 V -
250 Ampere
Rated permanent current at AC-23, 400 V -
200 Ampere
Rated permanent current Iu -
250 Ampere
Suitable for floor mounting -
Type of control element -
Long turning handle
Type of electrical connection of main circuit -
Rail connection
Version as main switch -
Version as maintenance-/service switch -

Availability On Request

£2,538.33
