3KC44500FA210AA3

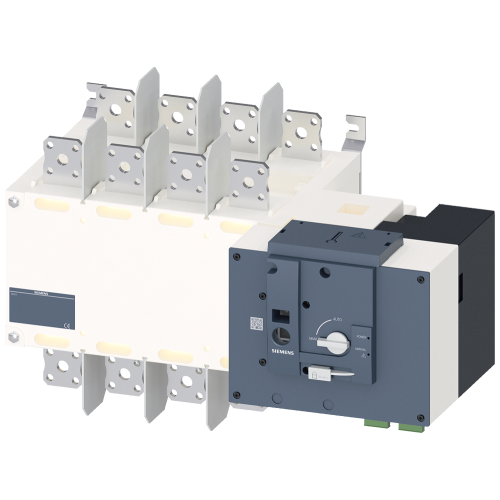

SENTRON, 3KC transfer switching equipment, remotely operated, RTSE, 4-pole, Iu: 1000 A

Manufacturer's No: 3KC4450-0FA21-0AA3     Manufacturer: Siemens
SENTRON, 3KC transfer switching equipment, remotely operated, RTSE, 4-pole, Iu: 1000 A

Availability On Request

£6,521.77
  • Product: SENTRON Transfer Switching Equipment 3KC
  • Model: RTSE
  • Configuration: 4-pole, remotely operated
  • Rated Current: 1000 A
  • Rated Voltage: 415 V AC
  • Rated Operational Current at AC-33 (415 V): 1000 A
  • Rated Operational Current at AC-23 (690 V): 630 A
  • Mounting: Screw mounting
  • Operating Mechanism: Motorized with long handle at the right end
  • Connection: Busbar connection

Selectable mandatory product

Accessories



Product

Manufacturer Material ID -
3KC4450-0FA21-0AA3
Net Weight -
47.50kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
FR
RoHs Compliance -
Yes
UNSPSC -
26101109

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Conditioned rated short-circuit current Iq -
- kiloampere
Number of switches -
-
Switching power at 400 V -
- Kilowatt
Device construction -
Built-in device fixed built-in technique
Degree of protection (NEMA) -
Other
Colour control element -
Black
Degree of protection (IP), front side -
IP00
Interlockable -
Max. rated operation voltage Ue AC -
415 Volt
Motor drive integrated -
Number of auxiliary contacts as change-over contact -
4
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Rated operating voltage -
166 Volt
Rated operation power at AC-23, 400 V -
560 Kilowatt
Rated permanent current at AC-21, 400 V -
1000 Ampere
Rated permanent current at AC-23, 400 V -
1000 Ampere
Rated permanent current Iu -
1000 Ampere
Rated short-time withstand current lcw -
35 kiloampere
Suitable for floor mounting -
Type of control element -
Long turning handle
Type of electrical connection of main circuit -
Rail connection
Version as main switch -
Version as maintenance-/service switch -
