3KC64262TA200TA3

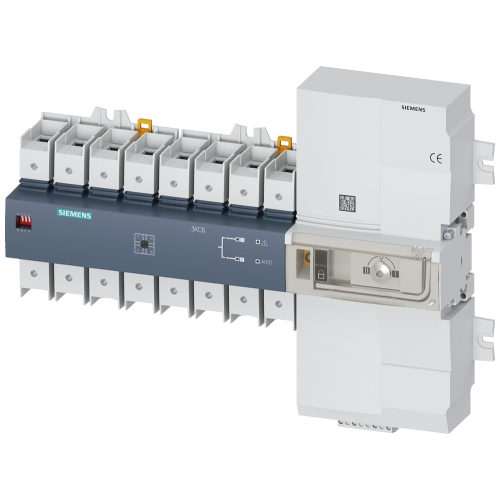

SENTRON, ATE, 3KC transfer switching equipment, automatic, ATSE, 4-pole, Iu: 63 A

Manufacturer's No: 3KC6426-2TA20-0TA3     Manufacturer: Siemens
SENTRON, ATE, 3KC transfer switching equipment, automatic, ATSE, 4-pole, Iu: 63 A

View 3D

Availability Back Order

£1,365.11
  • Transfer switching equipment 3KC ATSE
  • 4-pole automatic transfer switch
  • Rated operational current: 63 A
  • Rated operational voltage: 415 V AC
  • Suitable for AC-33 B at 415 V and AC-23 A at 690 V
  • Motorized operating mechanism with a long handle
  • Screw and standard mounting rail on 35 mm
  • Equipped with box terminal

Selectable mandatory product

Accessories



Product

Manufacturer Material ID -
3KC6426-2TA20-0TA3
Net Weight -
4.25kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
TN
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Conditioned rated short-circuit current Iq -
- kiloampere
Number of switches -
-
Switching power at 400 V -
- Kilowatt
Device construction -
Built-in device fixed built-in technique
Degree of protection (NEMA) -
Other
Colour control element -
Black
Degree of protection (IP), front side -
IP00
Interlockable -
Max. rated operation voltage Ue AC -
415 Volt
Motor drive integrated -
Number of auxiliary contacts as change-over contact -
6
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Rated operating voltage -
176 Volt
Rated operation power at AC-23, 400 V -
30 Kilowatt
Rated permanent current at AC-21, 400 V -
63 Ampere
Rated permanent current at AC-23, 400 V -
63 Ampere
Rated permanent current Iu -
63 Ampere
Rated short-time withstand current lcw -
4 kiloampere
Suitable for distribution board installation -
Suitable for floor mounting -
Type of control element -
Long turning handle
Type of electrical connection of main circuit -
Frame clamp
Version as main switch -
Version as maintenance-/service switch -
Version as safety switch -
