3KC83500FA220GA3

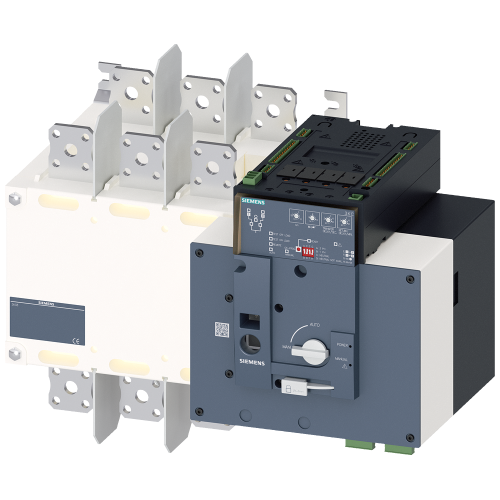

SENTRON, ATE, 3KC transfer switching equipment, automatic, ATSE, 3-pole, Iu: 1000 A

Manufacturer's No: 3KC8350-0FA22-0GA3     Manufacturer: Siemens
SENTRON, ATE, 3KC transfer switching equipment, automatic, ATSE, 3-pole, Iu: 1000 A

Availability On Request

£6,861.49
  • Transfer switching equipment 3KC ATSE
  • 3-pole automatic transfer switch
  • Rated operational current (Iu): 1000 A
  • Rated operational voltage (Ue AC): 415 V
  • Rated operational current (Ie) at AC-33 B at 415 V: 800 A
  • Rated operational current (Ie) at AC-23 A at 690 V: 630 A
  • Screw mounting with motorized operating mechanism
  • Long handle located at the right end
  • Busbar connection

Selectable mandatory product

Accessories



Product

Manufacturer Material ID -
3KC8350-0FA22-0GA3
Net Weight -
45.00kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
FR
RoHs Compliance -
Yes
UNSPSC -
26101109

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Conditioned rated short-circuit current Iq -
- kiloampere
Number of switches -
-
Switching power at 400 V -
- Kilowatt
Device construction -
Built-in device fixed built-in technique
Degree of protection (NEMA) -
Other
Colour control element -
Black
Degree of protection (IP), front side -
IP00
Interlockable -
Max. rated operation voltage Ue AC -
415 Volt
Motor drive integrated -
Number of auxiliary contacts as change-over contact -
4
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Rated operating voltage -
166 Volt
Rated operation power at AC-23, 400 V -
560 Kilowatt
Rated permanent current at AC-21, 400 V -
1000 Ampere
Rated permanent current at AC-23, 400 V -
1000 Ampere
Rated permanent current Iu -
1000 Ampere
Rated short-time withstand current lcw -
35 kiloampere
Suitable for floor mounting -
Type of control element -
Long turning handle
Type of electrical connection of main circuit -
Rail connection
Version as main switch -
Version as maintenance-/service switch -
Version as safety switch -
