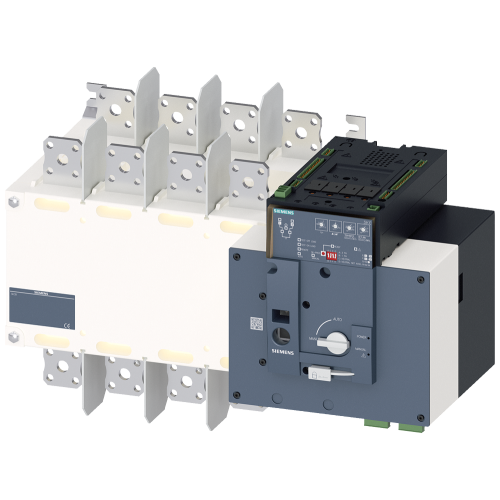

3KC84480FA220GA3

SENTRON, ATE, 3KC transfer switching equipment, automatic, ATSE, 4-pole, Iu: 800 A

Manufacturer's No: 3KC8448-0FA22-0GA3     Manufacturer: Siemens
SENTRON, ATE, 3KC transfer switching equipment, automatic, ATSE, 4-pole, Iu: 800 A

Availability Back Order

£6,723.60
  • Transfer switching equipment 3KC ATSE
  • 4-pole automatic transfer switch
  • Rated operational current (Iu): 800 A
  • Rated operational voltage (Ue AC): 415 V
  • Rated operational current at AC-33 B at 415 V: 800 A
  • Rated operational current at AC-23 A at 690 V: 630 A
  • Screw mounting with motorized operating mechanism
  • Long handle on the right end for easy operation
  • Busbar connection

Selectable mandatory product

Accessories



Product

Manufacturer Material ID -
3KC8448-0FA22-0GA3
Net Weight -
45.00kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
FR
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Conditioned rated short-circuit current Iq -
- kiloampere
Number of switches -
-
Switching power at 400 V -
- Kilowatt
Device construction -
Built-in device fixed built-in technique
Degree of protection (NEMA) -
Other
Colour control element -
Black
Degree of protection (IP), front side -
IP00
Interlockable -
Max. rated operation voltage Ue AC -
415 Volt
Motor drive integrated -
Number of auxiliary contacts as change-over contact -
4
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Rated operating voltage -
166 Volt
Rated operation power at AC-23, 400 V -
400 Kilowatt
Rated permanent current at AC-21, 400 V -
800 Ampere
Rated permanent current at AC-23, 400 V -
800 Ampere
Rated permanent current Iu -
800 Ampere
Rated short-time withstand current lcw -
35 kiloampere
Suitable for floor mounting -
Type of control element -
Long turning handle
Type of electrical connection of main circuit -
Rail connection
Version as main switch -
Version as maintenance-/service switch -
Version as safety switch -

Availability Back Order

£6,723.60
