3KC84580JA220GA3

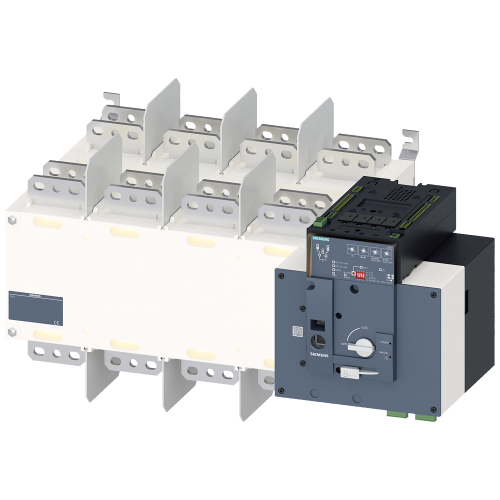

SENTRON, ATE, 3KC transfer switching equipment, automatic, ATSE, 4-pole, Iu: 2500 A

Manufacturer's No: 3KC8458-0JA22-0GA3     Manufacturer: Siemens
SENTRON, ATE, 3KC transfer switching equipment, automatic, ATSE, 4-pole, Iu: 2500 A

Availability On Request

£15,553.12
  • Transfer switching equipment 3KC for automatic operation
  • 4-pole ATSE with a rated current of Iu: 2500 A and rated voltage Ue AC: 415 V
  • Rated operational current Ie at AC-33 B at 415 V: 1250 A
  • Screw mounting for easy installation
  • Motorized operating mechanism with a long handle on the right end
  • Busbar connection for efficient power distribution

Selectable mandatory product

Accessories



Product

Manufacturer Material ID -
3KC8458-0JA22-0GA3
Net Weight -
77.00kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
FR
RoHs Compliance -
Yes
UNSPSC -
39121521

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Conditioned rated short-circuit current Iq -
- kiloampere
Number of switches -
-
Rated operation power at AC-23, 400 V -
- Kilowatt
Rated permanent current at AC-21, 400 V -
- Ampere
Switching power at 400 V -
- Kilowatt
Rated permanent current at AC-23, 400 V -
- Ampere
Device construction -
Built-in device fixed built-in technique
Degree of protection (NEMA) -
Other
Colour control element -
Black
Degree of protection (IP), front side -
IP00
Interlockable -
Max. rated operation voltage Ue AC -
415 Volt
Motor drive integrated -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Rated operating voltage -
166 Volt
Rated permanent current Iu -
2500 Ampere
Rated short-time withstand current lcw -
50 kiloampere
Suitable for floor mounting -
Type of control element -
Long turning handle
Type of electrical connection of main circuit -
Rail connection
Version as main switch -
Version as maintenance-/service switch -
Version as safety switch -

Availability On Request

£15,553.12
