3LD31500TL11

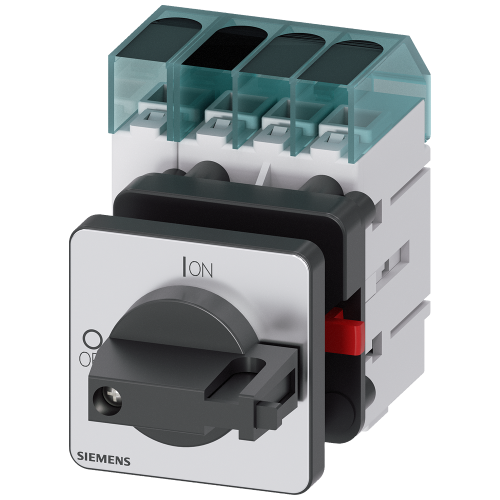

Switch disconnector 3LD3, Iu 25 A main control switch 3-pole + N

Manufacturer's No: 3LD3150-0TL11     Manufacturer: Siemens
Switch disconnector 3LD3, Iu 25 A main control switch 3-pole + N

Availability Back Order

£28.27
  • Load disconnector 3LD3
    • Main switch 3-pole + N
    • Rated operating capacity at AC-23: 25A at 400V (9.0 kW)
    • Front plate mounting
    • Basic switch with central hole mounting 22.5mm
    • Toggle drive: black 48x48 mm

Accessories

Component part

Product video
Product video


Product

Manufacturer Material ID -
3LD3150-0TL11
Net Weight -
0.24kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Rated operating voltage -
- Volt
Conditioned rated short-circuit current Iq -
- kiloampere
Switching power at 400 V -
- Kilowatt
Device construction -
Built-in device fixed built-in technique
Degree of protection (NEMA) -
Other
Colour control element -
Black
Degree of protection (IP), front side -
IP65
Interlockable -
Max. rated operation voltage Ue AC -
690 Volt
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
4
Number of switches -
1
Rated operation power at AC-23, 400 V -
10 Kilowatt
Rated operation power at AC-3, 400 V -
8 Kilowatt
Rated permanent current at AC-21, 400 V -
25 Ampere
Rated permanent current at AC-23, 400 V -
20 Ampere
Rated permanent current Iu -
25 Ampere
Rated short-time withstand current lcw -
0.5 kiloampere
Suitable for front mounting centre -
Type of control element -
Toggle
Type of electrical connection of main circuit -
Frame clamp
Version as main switch -
Version as maintenance-/service switch -
Version as safety switch -

Availability Back Order

£28.27
