3LD32541TK53

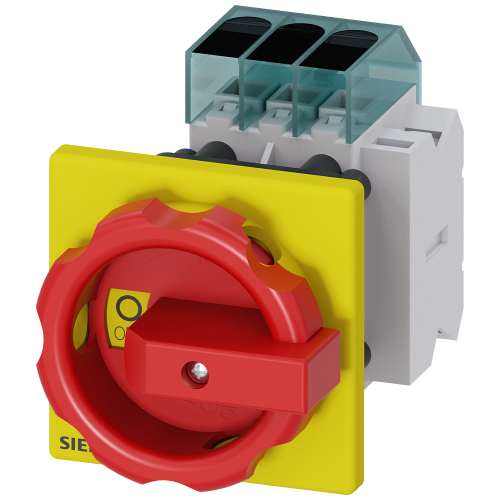

Switch disconnector 3LD3, Iu 32 A main control switch 3-pole

Manufacturer's No: 3LD3254-1TK53     Manufacturer: Siemens
Switch disconnector 3LD3, Iu 32 A main control switch 3-pole

View 3D

Availability Back Order

£32.04
  • Load disconnector 3LD3, Iu: 32 A
  • Main switch: 3-pole
  • Rated operating capacity for AC-23 A at 400V: 11.5 kW
  • Front plate mounting
  • Basic switch with central hole mounting: 22.5 mm
  • Rotary actuator: red/yellow, 66 x 66 mm
  • Auxiliary switch: 1OE + 1S

Accessories

Component part

Product video
Product video


Product

Manufacturer Material ID -
3LD3254-1TK53
Net Weight -
0.26kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Rated operating voltage -
- Volt
Conditioned rated short-circuit current Iq -
- kiloampere
Switching power at 400 V -
- Kilowatt
Device construction -
Built-in device fixed built-in technique
Degree of protection (NEMA) -
Other
Colour control element -
Red
Degree of protection (IP), front side -
IP65
Interlockable -
Max. rated operation voltage Ue AC -
690 Volt
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of poles -
3
Number of switches -
1
Rated operation power at AC-23, 400 V -
12 Kilowatt
Rated operation power at AC-3, 400 V -
10 Kilowatt
Rated permanent current at AC-21, 400 V -
32 Ampere
Rated permanent current at AC-23, 400 V -
22 Ampere
Rated permanent current Iu -
32 Ampere
Rated short-time withstand current lcw -
0.5 kiloampere
Suitable for front mounting centre -
Type of control element -
Short thumb-grip
Type of electrical connection of main circuit -
Frame clamp
Version as emergency stop installation -
Version as main switch -
Version as maintenance-/service switch -
Version as safety switch -
