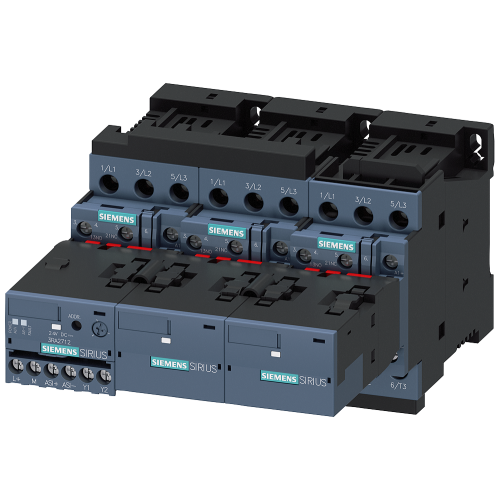

3RA24258XH321BB4

Contactor assembly for star-delta (wye-delta) start with AS-i AC3, 15/18.5 kW/400 V 24 V DC, 3-pole S0

Manufacturer's No: 3RA2425-8XH32-1BB4     Manufacturer: Siemens
Contactor assembly for star-delta (wye-delta) start with AS-i AC3, 15/18.5 kW/400 V 24 V DC, 3-pole S0

View 3D

Availability Back Order

£644.24
  • Contactors assembly for star-delta (wye-delta) start
  • AS-i AC-3 rated
  • 15 kW at 400 V, 18.5 kW at 400 V
  • 24 V DC coil voltage
  • 3-pole, size S0 contactor
  • Screw terminals for easy installation
  • Electrical and mechanical interlock included
  • 3 Normally Open (NO) and 3 Normally Closed (NC) integrated contacts

Accessories

Component part

Question and Answer (Q&A video)
Presentation video
Presentation video
Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3RA2425-8XH32-1BB4
Net Weight -
2.51kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated operation power NEMA -
- Kilowatt
Rated control supply voltage Us at DC -
24 Volt
Degree of protection (IP) -
IP20
Degree of protection (IP rating) -
IP20
Degree of protection (NEMA) -
Other
Function -
Star-delta contactor
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Rated control supply voltage at DC -
24 Volt
Rated operation current Ie at AC-3, 400 V -
40 Ampere
Rated operation power at AC-3, 400 V -
15 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
DC

Availability Back Order

£644.24
