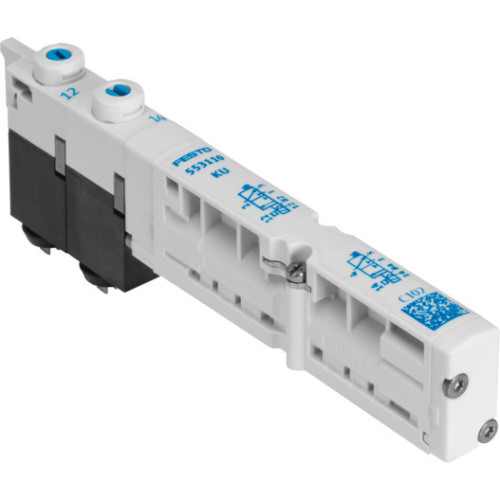

VMPA1-M1H-HU-PI Solenoid valve

Manufacturer's No: VMPA1-M1H-HU-PI     Manufacturer: Festo
VMPA1-M1H-HU-PI Solenoid valve

Availability Available to order

£96.84
  • Solenoid valve VMPA1-M1H-HU-PI
  • Valve function: 2x3/2-way, open/closed, monostable
  • Type of actuation: Electric
  • Valve size: 10mm
  • Standard nominal flow rate (DIN 1343): 140 L/min and 190 L/min
  • Operating pressure: -0.09 MPa, 1 MPa, -0.9 bar, 10 bar
  • Design: Poppet valve with spring return
  • Type of reset: Mechanical spring
  • Approval: c UL us - Recognized (OL), UL certificate MH19482
  • Degree of protection: IP65, IEC 60529

Read more

  • Sealing principle: Soft
  • Mounting position: Optional
  • Manual override: Detenting and Non-detenting
  • Type of piloting: Pilot actuated
  • Flow direction: Reversible
  • Pilot pressure: 0.4 MPa, 0.8 MPa, 4 bar, 8 bar
  • Suitability for vacuum: Yes
  • Standard nominal flow rate with QS-6: 140 L/min and 190 L/min
  • Switching time off/on: 10 ms
  • Max. positive test pulse with 0 signal: 400 ms
  • Max. negative test pulse with 1 signal: 200 ms
  • Permissible voltage fluctuations: +/- 25%
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible
  • Vibration resistance: Transport application test severity level 2 to FN 942017-4 and EN 60068-2-6
  • Shock resistance: Shock test severity level 2 to FN 942017-5 and EN 60068-2-27
  • Corrosion resistance class CRC: 3 - high corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Storage temperature: -20°C to 40°C
  • Media temperature: -5°C to 50°C
  • Relative air humidity: Max. 90% at 40°C
  • Ambient temperature: -5°C to 50°C
  • Max. tightening torque for valve mounting: 0.25 Nm
  • Product weight: 42 g
  • Type of mounting: With through-hole
  • RoHS-compliant materials: NBR seals, PPA reinforced housing


Product

Manufacturer Material ID -
VMPA1-M1H-HU-PI
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
84812090
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
41111926
