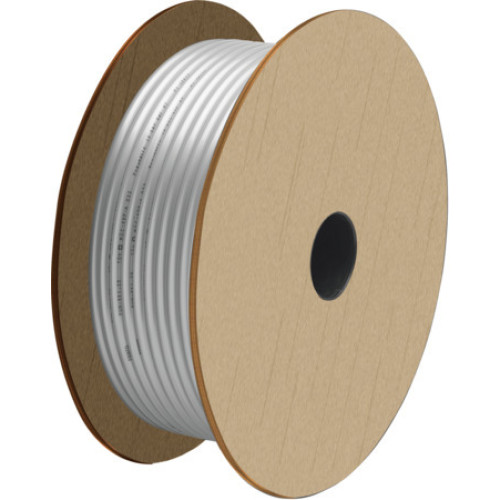

PAN-6X1-SI-500 Plastic tubing

Manufacturer's No: PAN-6X1-SI-500     Manufacturer: Festo
PAN-6X1-SI-500 Plastic tubing

Availability Available to order

£1.67
  • Plastic tubing PAN-6X1-SI-500
  • Material: Polyamide
  • Length: 500m
  • Outside Diameter: 6mm
  • Inside Diameter: 4mm
  • Flow-relevant bending radius: 32mm
  • Min. bending radius: 14mm
  • Suitable for energy chains
  • Temperature-dependent operating pressure: -0.095 MPa to 1.9 MPa (or -0.95 to 19 BAR, or -13.775 to 275.5 PSI)
  • Approval: German Technical Control Board (TÜV)

Read more

  • Operating medium: Compressed air to ISO 8573-1:2010 [7:-:-]
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Ambient temperature: -30°C to 80°C
  • Product weight: 0.016 kg/m
  • Pneumatic connections: For push-in connector OD 6mm, for barbed fitting ID 4mm with union nut, for barbed fitting ID 4mm
  • Colour: Silver
  • Shore hardness: D 55 +/-3
  • RoHS-compliant
  • Material: TPE-A


Product

Manufacturer Material ID -
PAN-6X1-SI-500
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
39173200
Country of Origin -
CZ
Minimum Order Quantity -
1
UNSPSC -
41111926
Festo

Availability Available to order

£1.67
