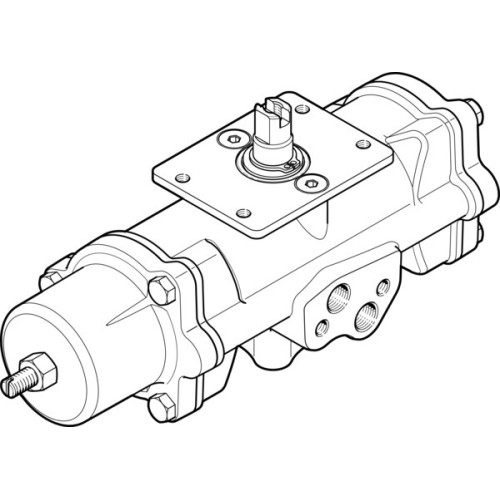

DAPS-0015-090-RS1-F03-CR Semi-rotary drive

Manufacturer's No: DAPS-0015-090-RS1-F03-CR     Manufacturer: Festo
DAPS-0015-090-RS1-F03-CR Semi-rotary drive

Availability Available to order

£622.26
  • Type: Semi-rotary drive
  • Actuator Size: 0015
  • Flange Hole Pattern: F03
  • Swivel Angle: 90 degrees
  • Shaft Connection Depth: 10.2 mm
  • Mounting: Direct flange mounting
  • Air Connection: VDI/VDE 3845 Namur valves
  • Design: Stainless steel version with Scotch yoke system
  • Operation: Single-acting
  • Cushioning: No cushioning

Read more

  • Safety Integrity Level: Up to SIL 2 High Demand mode
  • Supply Pressure for Spring Strength: 0.28 MPa (2.8 bar)
  • Operating Pressure Range: 0.28 MPa (2.8 bar) to 8.4 MPa (84 bar)
  • CE Mark: EU Explosion Protection Directive (ATEX)
  • UKCA Marking: UK EX instructions
  • ATEX Category: II 2G (gas), II 2D (dust)
  • Explosion Ignition Protection Type: Ex h IIC T6...T3 Gb X (gas), Ex h IIIC T85°C...T200°C Db X (dust)
  • Ambient Temperature Range: -20°C to +80°C
  • Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion Resistance Class: 3 - high corrosion stress
  • LABS (PWIS) Conformity: VDMA24364-B1/B2-L
  • Spring Return Torque: 5 Nm (0°), 3.7 Nm (50°), 7.5 Nm (90°)
  • Air Consumption: 0.6 L per cycle at 0.6 MPa (6 bar, 87 psi)
  • Product Weight: 1600 g
  • Shaft Connection: T9
  • Pneumatic Connection: G1/8
  • Material: High-alloy stainless steel (cover, housing, shaft), FPM/NBR/PUR (seals)
  • RoHS-compliant materials
  • Symbol: 991266
  • Closing Direction: Closes to the right
  • Position Detection: Without
  • Nominal Operating Pressure: 0.56 MPa (5.6 bar)


Product

Manufacturer Material ID -
DAPS-0015-090-RS1-F03-CR
Net Weight -
1.58kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
41111926
