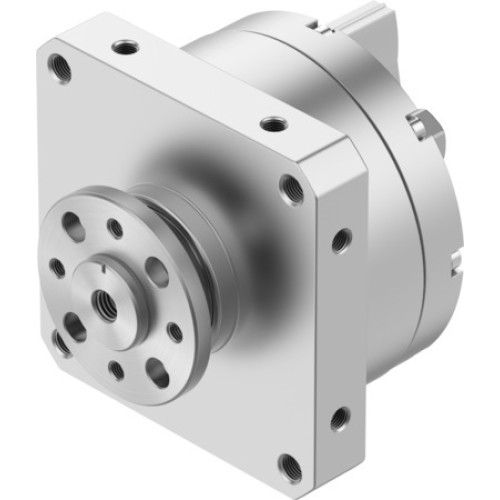

DSM-63-270-FW-A-B Semi-rotary drive

Manufacturer's No: DSM-63-270-FW-A-B     Manufacturer: Festo
DSM-63-270-FW-A-B Semi-rotary drive

Availability Back Order

£700.74
  • Size: 63
  • Swivel angle: 0 - 270 degrees
  • Mode of operation: Double-acting
  • Design structure: Rotary vane
  • Operating pressure: 0.15 MPa, 1 MPa, 1.5 bar, 10 bar
  • Max. swivel frequency at 0.6 MPa: 1.6 Hz
  • Operating medium: Compressed air to ISO 8573-1:2010
  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Ambient temperature: -10 to 60 degrees Celsius

Read more

  • Max. axial force: 500 N
  • Max. radial force: 500 N
  • Theoretical torque at 0.6 MPa: 40 Nm
  • Product weight: 4475 g
  • Type of mounting: Via female thread
  • Pneumatic connection: G1/4
  • Material: Drive shaft - Steel, Nickel-plated; Seals - TPE-U(PU); Housing - Wrought aluminium alloy
  • Position detection: Via proximity switch
  • Symbol: 991265

Accessories

PUN-H-8X1.25-TBL 6MM PLASTIC TUBING

Product Code - 8048691
Price £1.61
Back Order

QS-G1/4-8 PUSH-IN FITTING

Product Code - 186099
Price £2.98
Back Order

QSL-G1/4-8 PUSH-IN L-FITTING

Product Code - 186120
Price £4.50
Back Order

PUN-H-8X1 25-BL PLATIC TUBING

Product Code - 197385
Price £1.61
Back Order


Product

Manufacturer Material ID -
DSM-63-270-FW-A-B
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84123900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

Voltage type -
UN
Coating housing -
UN
Type of interface for safety communication -
UN
Type of electric connection -
UN
Type of switching output -
UN
Type of switch function -
UN
Explosion safety category for gas -
UN
Explosion safety category for dust -
UN
Construction type housing -
UN
Mechanical mounting condition for sensor -
UN
Category according to EN 954-1 -
UN
Type of actuation -
UN
Type of interface -
UN
Performance level acc. EN ISO 13849-1 -
UN
Interference resistance to magnetic fields -
UN
Material housing -
Other
Housing material -
Other
Interface type -
None
Performance level acc. to EN ISO 13849-1 -
None
SIL according to IEC 61508 -
None
