553903

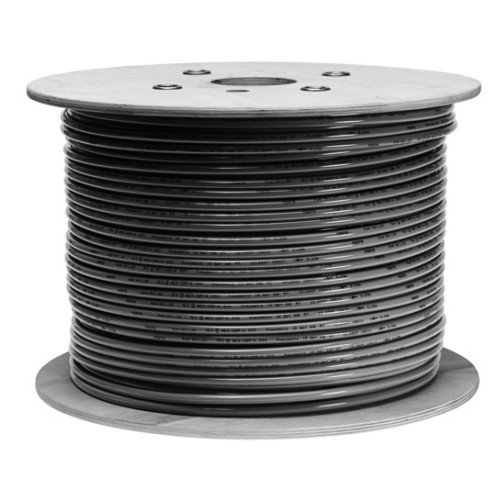

PAN-10X1,5-SW-300 Plastic tubing

Manufacturer's No: PAN-10X1,5-SW-300     Manufacturer: Festo
PAN-10X1,5-SW-300 Plastic tubing

Availability Available to order

£3.35
  • Plastic tubing PAN-10X1,5-SW-300 made of Polyamide
  • Outside diameter: 10mm
  • Inside diameter: 7mm
  • Flow-relevant bending radius: 58mm
  • Min. bending radius: 27mm
  • Length: 300m
  • Suitable for energy chains
  • Temperature-dependent operating pressure: -0.095 MPa to 1.7 MPa (or -0.95 to 17 BAR, or -13.775 to 246.5 PSI)
  • Approval by German Technical Control Board (TÜV)
  • LABS (PWIS) conformity: VDMA24364-B2-L

Read more

  • Ambient temperature range: -30°C to 80°C
  • Product weight: 0.042 kg/m
  • Pneumatic connection: For push-in connector with O.D. 10mm
  • Color: Black
  • Shore hardness: D 55 +/-3
  • RoHS-compliant material: TPE-A


Product

Manufacturer Material ID -
PAN-10X1,5-SW-300
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
39173200
Country of Origin -
CZ
Minimum Order Quantity -
1
UNSPSC -
41111926
