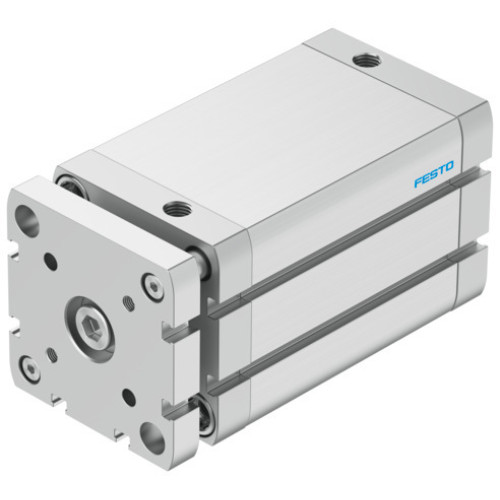

ADNGF-63-80-P-A Compact cylinder

Manufacturer's No: ADNGF-63-80-P-A     Manufacturer: Festo
ADNGF-63-80-P-A Compact cylinder

Availability Available to order

£263.32
  • Compact cylinder ADNGF-63-80-P-A
  • Stroke: 80 mm
  • Piston diameter: 63 mm
  • ISO 21287 standard
  • Cushioning: Flexible cushioning rings/plates at both ends
  • Mounting position: Optional
  • Design: Piston, Piston rod, Profile barrel
  • Position detection: Via proximity switch
  • Protection against torque/guide: Guide rod with yoke
  • Operating pressure: 0.1 MPa, 1 MPa, 1 bar, 10 bar

Read more

  • Mode of operation: Double-acting
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Lubricated operation possible
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Ambient temperature: -20°C to 80°C
  • Impact energy in end positions: 1.3 J
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 1750 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 1870 N
  • Moving mass: 626 g
  • Product weight: 1504 g
  • Pneumatic connection: G1/8
  • RoHS-compliant materials
  • Material: Collar screws - Steel, Cover - Anodised wrought aluminium alloy, Seals - TPE-U(PUR), End plate - Anodised wrought aluminium alloy, Piston rod - High-alloy steel, Cylinder barrel - Smooth-anodised wrought aluminium alloy


Product

Manufacturer Material ID -
ADNGF-63-80-P-A
Net Weight -
1.43kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
TR
Minimum Order Quantity -
1
UNSPSC -
41111926
Festo

Availability Available to order

£263.32
