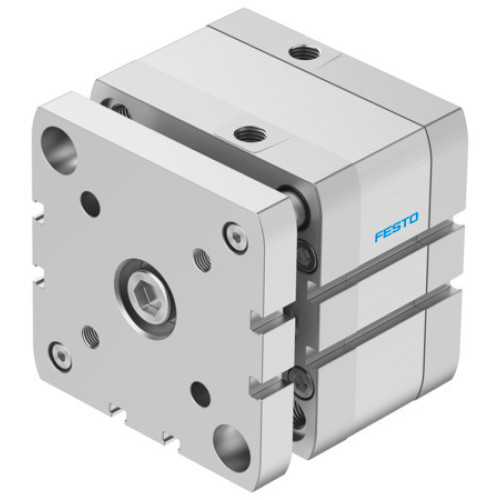

ADNGF-80-10-P-A Compact cylinder

Manufacturer's No: ADNGF-80-10-P-A     Manufacturer: Festo
ADNGF-80-10-P-A Compact cylinder

Availability Available to order

£273.88
  • Compact cylinder ADNGF-80-10-P-A
  • Stroke: 10 mm
  • Piston diameter: 80 mm
  • Based on standard: ISO 21287
  • Cushioning: Elastic cushioning rings/plates at both ends
  • Mounting position: Optional
  • Design: Piston, Piston rod, Profile barrel
  • Position detection: Via proximity switch
  • Protection against torque/guide: Guide rod with yoke
  • Operating pressure: 0.1 MPa, 1 MPa, 1 bar, 10 bar

Read more

  • Mode of operation: Double-acting
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Ambient temperature: -20°C to 80°C
  • Impact energy in end positions: 1.8 J
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 2827 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 3016 N
  • Moving mass: 803 g
  • Product weight: 1562 g
  • Pneumatic connection: G1/8
  • Note on materials: RoHS-compliant
  • Material collar screws: Steel
  • Material cover: Die-cast aluminium, coated
  • Material seals: TPE-U(PUR)
  • Material end plate: Anodised wrought aluminium alloy
  • Material piston rod: High-alloy steel
  • Material cylinder barrel: Smooth-anodised wrought aluminium alloy


Product

Manufacturer Material ID -
ADNGF-80-10-P-A
Net Weight -
1.49kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
41111926
