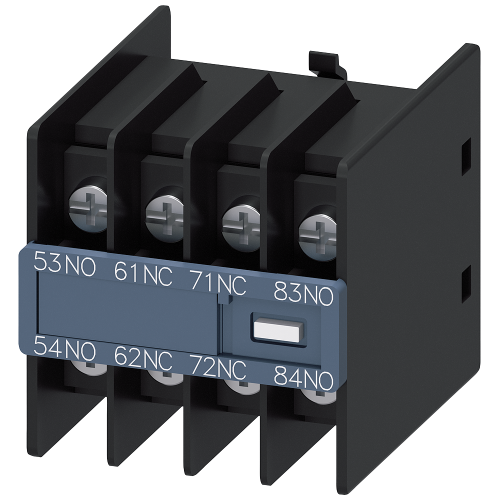

3RH29114GA22

Auxiliary switch on the front, 2 NO + 2 NC Current path 1 NO, 1 NC, 1 NC, 1 NO for contactor relays

Manufacturer's No: 3RH2911-4GA22     Manufacturer: Siemens
Auxiliary switch on the front, 2 NO + 2 NC Current path 1 NO, 1 NC, 1 NC, 1 NO for contactor relays

View 3D

Availability Back Order

£13.70
  • Auxiliary switch located on the front
  • Configuration: 2 Normally Open (NO) + 2 Normally Closed (NC)
  • Compatible with current paths: 1 NO, 1 NC, 1 NC, 1 NO
  • Ring cable lug connection
  • Physically coded
  • Compatible only with contactor relays 3RH2140 and 3RH2442
  • Combinable according to EN 50011
Instructional video
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3RH2911-4GA22
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CZ
Export Control Regulations -
N / N
UNSPSC -
39122216

Technical Specification

Lamp holder -
None
Model -
Clip-on
Type of electric connection -
Other
Lamp cap/base -
None
Mounting method -
Other
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
2
Number of fault-signal switches -
0
Rated operation current Ie at AC-15, 230 V -
6 Ampere

Availability Back Order

£13.70
