3RK13010AB101AB4

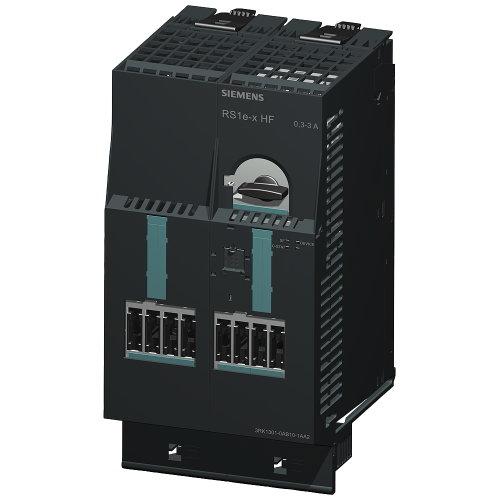

RS1E-X for ET200S High Feature reversing starter Setting range 0.3...3 A Mechanical switching Electr

Manufacturer's No: 3RK1301-0AB10-1AB4     Manufacturer: Siemens
RS1E-X for ET200S High Feature reversing starter Setting range 0.3...3 A Mechanical switching Electr

Availability On Request

POA
  • Model: RS1E-X for ET200S High Feature Reversing Starter
  • Setting Range: 0.3 to 3 A
  • Mechanical Switching
  • Electronic Protection for AC-3, up to 1.1 kW / 400 V
  • Expandable for Brake Control Module and 2DI Module
  • Circuit Breaker Signaling, Parameterizable DPV 1-Capable
  • PROFIENERGY-Capable to PN

Follow-up article



Product

Manufacturer Material ID -
3RK1301-0AB10-1AB4
Net Weight -
2.41kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Number of command positions -
-
Number of auxiliary contacts as normally open contact -
-
Number of auxiliary contacts as normally closed contact -
-
Rated operation current Ie -
- Ampere
Number of indicator lights -
-
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Type of electrical connection for auxiliary- and control current circuit -
UN
Rated operation power at AC-3, 230 V, 3-phase -
- Kilowatt
Rated power, 460 V, 60 Hz, 3-phase -
- Kilowatt
Rated power, 575 V, 60 Hz, 3-phase -
- Kilowatt
Ambient temperature, upper operating limit -
- Degrees celsius
Rated conditional short-circuit current, type 2, 400 V -
- Ampere
Rated conditional short-circuit current, type 2, 230 V -
- Ampere
Rated conditional short-circuit current, type 1, 480 Y/277 V -
- Ampere
Rated conditional short-circuit current, type 1, 600 Y/347 V -
- Ampere
Degree of protection (NEMA) -
UN
Rated control supply voltage Us at DC -
20.4 Volt
Degree of protection (IP) -
IP20
Coordination class according to IEC 60947-4-3 -
Class 2
Degree of protection (IP rating) -
IP20

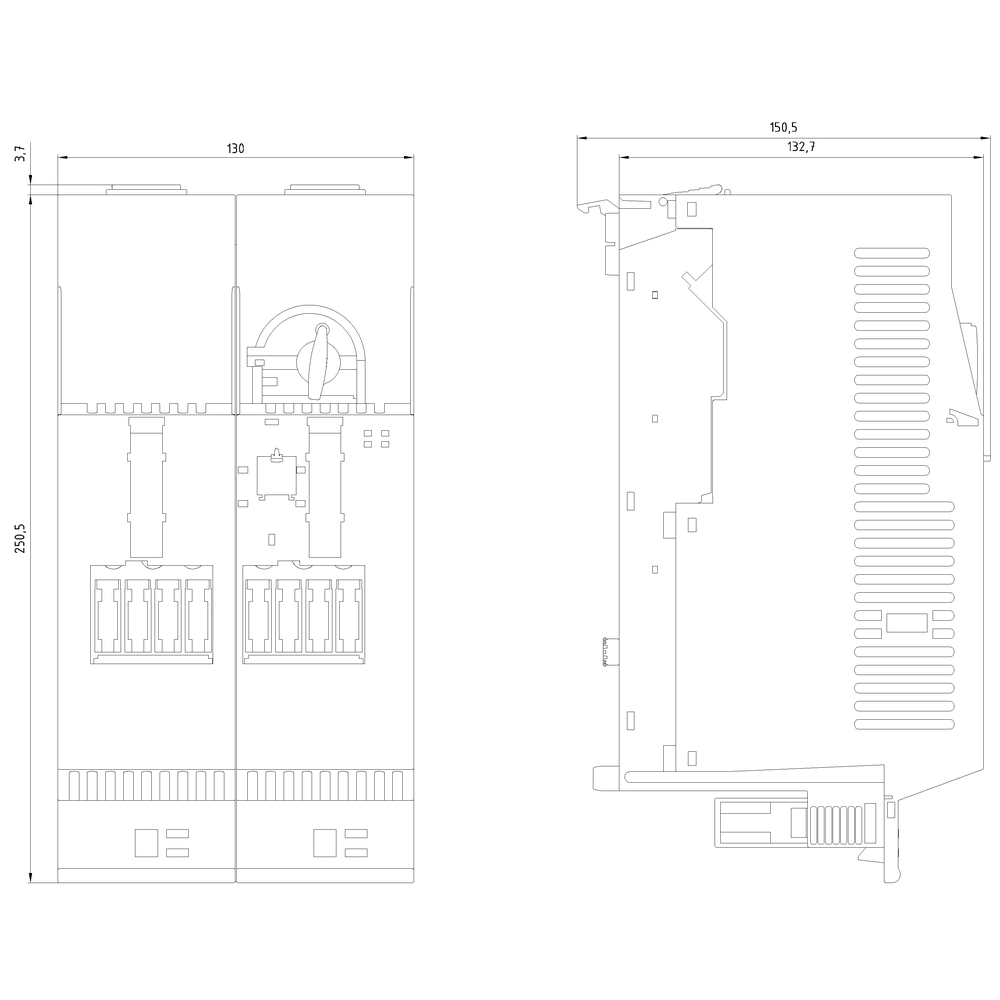

Depth -
150 Millimetre
Height -
290 Millimetre
Kind of motor starter -
Reversing starter
Overload release current setting -
0.3 Ampere
Rated control supply voltage at DC -
20.4 Volt
Rated operation current at AC-3, 400 V -
3 Ampere
Rated operation power at AC-3, 400 V -
1.1 Kilowatt
Release class -
Other
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
DC
Width -
130 Millimetre
With short-circuit release -
