3RK13011EB000AA2

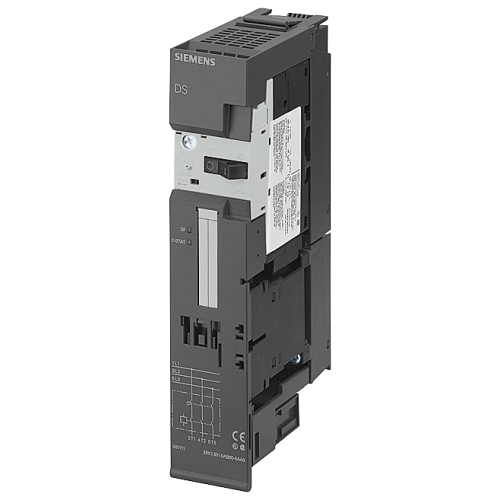

DS1-X for ET 200S Standard DOL starter expandable Setting range 2.8...4 A AC-3, 1.5kW / 400 V Elect

Manufacturer's No: 3RK1301-1EB00-0AA2     Manufacturer: Siemens
DS1-X for ET 200S Standard DOL starter expandable Setting range 2.8...4 A AC-3, 1.5kW / 400 V Elect

View 3D

Availability Back Order

POA
  • Model: DS1-X for ET 200S
  • Starter Type: Standard DOL
  • Setting Range: 2.8 to 4 A AC-3
  • Power: 1.5 kW at 400 V
  • Expandable
  • Electromechanical starter for brake control module

Follow-up article



Product

Manufacturer Material ID -
3RK1301-1EB00-0AA2
Net Weight -
0.88kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Number of command positions -
-
Number of auxiliary contacts as normally open contact -
-
Number of auxiliary contacts as normally closed contact -
-
Rated operation current Ie -
- Ampere
Number of indicator lights -
-
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Type of electrical connection for auxiliary- and control current circuit -
UN
Rated operation power at AC-3, 230 V, 3-phase -
- Kilowatt
Rated power, 460 V, 60 Hz, 3-phase -
- Kilowatt
Rated power, 575 V, 60 Hz, 3-phase -
- Kilowatt
Ambient temperature, upper operating limit -
- Degrees celsius
Rated conditional short-circuit current, type 2, 400 V -
- Ampere
Rated conditional short-circuit current, type 2, 230 V -
- Ampere
Rated conditional short-circuit current, type 1, 480 Y/277 V -
- Ampere
Rated conditional short-circuit current, type 1, 600 Y/347 V -
- Ampere
Degree of protection (NEMA) -
UN
Rated control supply voltage Us at DC -
20.4 Volt
Degree of protection (IP) -
IP20
Coordination class according to IEC 60947-4-3 -
Class 1
Degree of protection (IP rating) -
IP20
Depth -
120 Millimetre
Height -
265 Millimetre
Kind of motor starter -
Direct starter
Overload release current setting -
2.8 Ampere
Rated control supply voltage at DC -
20.4 Volt
Rated operation current at AC-3, 400 V -
4 Ampere
Rated operation power at AC-3, 400 V -
1.5 Kilowatt
Release class -
CLASS 10
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
DC
Width -
45 Millimetre
With short-circuit release -
