3RK14002CG002AA2

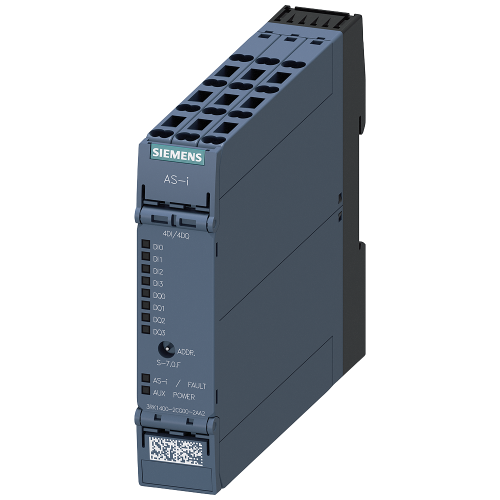

AS-i SlimLine Compact module SC22.5 digital 4DI/4DQ, IP20, spring-type terminals

Manufacturer's No: 3RK1400-2CG00-2AA2     Manufacturer: Siemens
AS-i SlimLine Compact module SC22.5 digital 4DI/4DQ, IP20, spring-type terminals

View 3D

Availability Back Order

£144.53
  • AS-i SlimLine Compact module SC22.5
  • Digital 4 DI/4 DQ
  • 4 x inputs for 3-wire sensor
  • Sensor supply switchable
  • 4 x output, 2 A, 24 V DC (max 4 A for all outputs)
  • Spring-type terminals
  • Overall width: 22.5 mm

Accessories

Removable terminals 2-POLE

Product Code - 3ZY11211BA00
Price £3.37
Back Order

Removable terminals 4-POLE

Product Code - 3ZY11411BA00
Price £5.41
Back Order

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.22
Back Order

Component part



Product

Manufacturer Material ID -
3RK1400-2CG00-2AA2
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121521

Technical Specification

Input current at signal 1 -
- Milliampere
Time delay at signal exchange -
- Millisecond
Voltage type of supply voltage -
UN
Type of voltage (input voltage) -
UN
Output current -
- Ampere
Explosion safety category for gas -
UN
Explosion safety category for dust -
UN
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Supply voltage DC -
- Volt
Permitted voltage at output -
- Volt
Permitted voltage at input -
- Volt
Type of output voltage -
UN
SIL according to IEC 61508 -
UN
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Type of electric connection -
Spring clamp connection
Degree of protection (IP rating) -
IP20
Depth -
120 Millimetre
Height -
100 Millimetre
Number of digital inputs -
4
Number of digital outputs -
4
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Short-circuit protection, outputs available -
Supporting protocol for ASI -
System accessory -
Type of digital output -
Other
Width -
22.5 Millimetre

Availability Back Order

£144.53
