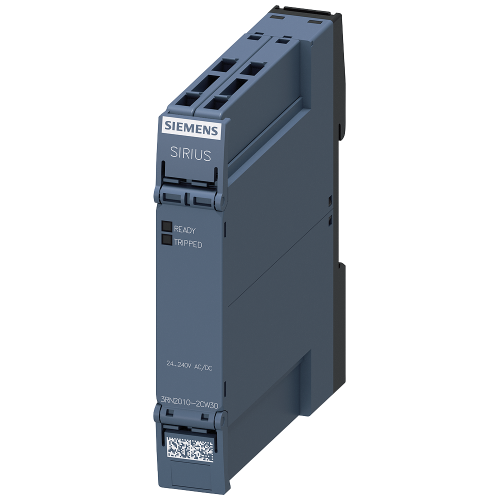

3RN20102CW30

Thermistor motor protection relay, standard, spring-type terminal, 1 NO, 1 NC, 24-240 V AC/DC

Manufacturer's No: 3RN2010-2CW30     Manufacturer: Siemens
Thermistor motor protection relay, standard, spring-type terminal, 1 NO, 1 NC, 24-240 V AC/DC

View 3D

Availability In Stock

£77.55
  • Thermistor motor protection relay
  • Compact evaluation unit in a 17.5 mm enclosure
  • Spring-type terminals
  • 1 Normally Open (NO) contact, 1 Normally Closed (NC) contact
  • Operating voltage: 24 V-240 V AC/DC
  • Auto RESET feature suitable for bimetallic switch
  • 2 LEDs for status indication (Ready/Tripped)
  • Galvanic isolation for enhanced safety

Accessories

Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Presentation video
Product video
Presentation video


Product

Manufacturer Material ID -
3RN2010-2CW30
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us -
- Volt
Voltage type for actuating -
UN
Connection type auxiliary circuit -
Spring clamp connection
Depth -
90 Millimetre
Height -
100 Millimetre
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Number of measuring circuits -
1
Width -
17.5 Millimetre
