Timing relay, Multifunction 2 change-over contacts, 27 functions 7 time ranges (0.05 s...100 h) 12-2

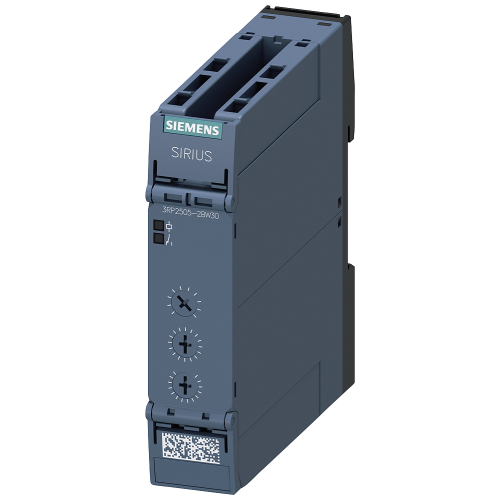

3RP25052BW30

Timing relay, Multifunction 2 change-over contacts, 27 functions 7 time ranges (0.05 s...100 h) 12-2

Produced by Siemens

Availability Back Order

Price - £136.54
Timing relay, Multifunction 2 change-over contacts, 27 functions 7 time ranges (0.05 s...100 h) 12-240 V AC/DC at 50/60 Hz AC with LED Spring-type terminal (push-in)
No alternatives available for this product.
Product
Manufacturer Material ID -
3RP2505-2BW30
Net Weight -
0.17kg
Additional Product Information
Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529
Technical Specification
Rated control supply voltage Us at AC 50HZ -
12 Volt
Rated control supply voltage Us at AC 60HZ -
12 Volt
Rated control supply voltage Us at DC -
12 Volt
Width -
22.5 Millimetre
Height -
100 Millimetre
Depth -
90 Millimetre
Time range -
0.05 Second
Rated control supply voltage at AC 50 Hz -
12 Volt
Rated control supply voltage at AC 60 Hz -
12 Volt
Rated control supply voltage at DC -
12 Volt
Number of outputs, delayed, change-over contact -
2
