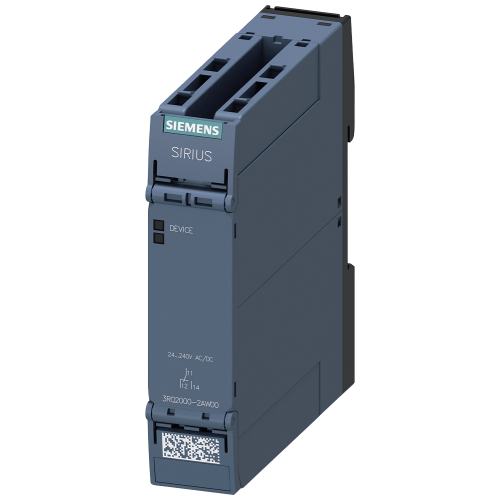

3RQ20002AW00

Coupling relays in industrial enclosure 1 change-over contact Wide voltage range 24 V to 240 V AC/DC Spring-type terminal

Manufacturer's No: 3RQ2000-2AW00     Manufacturer: Siemens
Coupling relays in industrial enclosure 1 change-over contact Wide voltage range 24 V to 240 V AC/DC Spring-type terminal

Availability On Request

£43.48
  • Coupling relay in industrial enclosure
  • 1 changeover contact
  • Wide voltage range: 24V to 240V AC/DC
  • Spring-type terminals

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)
Product video
Product video


Product

Manufacturer Material ID -
3RQ2000-2AW00
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

Nominal current -
- Ampere
Type of switch contact -
UN
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Degree of protection (IP) -
IP20
Degree of protection (IP rating) -
IP20
Depth -
90 Millimetre
Drive, polarization -
Polarized
Drive, switching attitude -
Mono stable
Height -
100 Millimetre
Number of contacts as change-over contact -
1
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Type of electric connection -
Spring clamp connection
Voltage type for actuating -
AC/DC
Width -
22.5 Millimetre
With LED indication -

Availability On Request

£43.48
