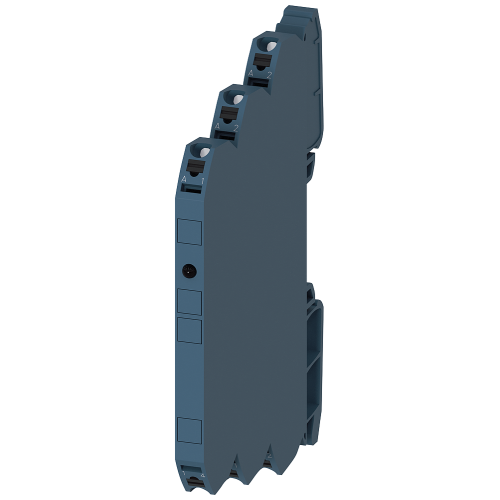

3RQ30182AB01

Output coupler 1 change-over contact hard gold-plated 24 V AC/DC Enclosure width 6.2 mm Spring-type terminal (push-in) Thermal cur

Manufacturer's No: 3RQ3018-2AB01     Manufacturer: Siemens
Output coupler 1 change-over contact hard gold-plated 24 V AC/DC Enclosure width 6.2 mm Spring-type terminal (push-in) Thermal current 6A

View 3D

Availability In Stock

£30.62
  • Output coupler with 1 change-over contact
  • Hard gold-plated for durability
  • Operating voltage: 24 V AC/DC
  • Enclosure width: 6.2 mm
  • Spring-type terminal (push-in) for easy installation
  • Thermal current capacity: 6A

Accessories

Connecting comb 2-pole

Product Code - 3RQ39010A
Price £1.15
Back Order

Connecting comb 4-pole

Product Code - 3RQ39010B
Price £2.04
Back Order
Product video
Product video


Product

Manufacturer Material ID -
3RQ3018-2AB01
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85364190
Country of Origin -
TN
RoHs Compliance -
Yes
UNSPSC -
39122331

Technical Specification

Nominal current -
- Ampere
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Number of contacts as normally closed contact -
-
Number of contacts as normally open contact -
-
Degree of protection (IP) -
IP20
Type of switch contact -
Single contact
Type of electric connection -
Spring clamp connection
Degree of protection (IP rating) -
IP20
Depth -
72.5 Millimetre
Drive, polarization -
Polarized
Drive, switching attitude -
Mono stable
Height -
93 Millimetre
Number of contacts as change-over contact -
1
Voltage type for actuating -
AC/DC
Width -
6.2 Millimetre
With LED indication -

Availability In Stock

£30.62
