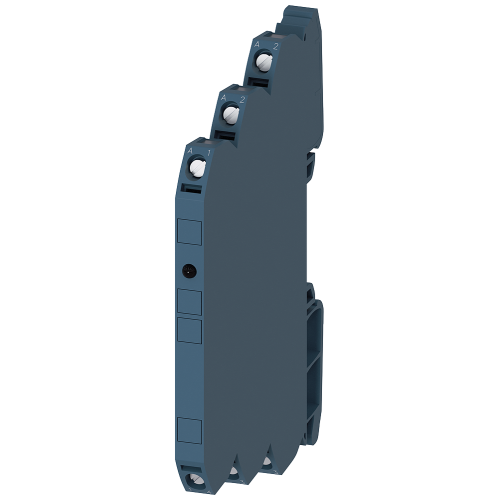

3RQ30521SM50

Output coupler Optocoupler 1 NO triac, Input 24 V DC Output 20-264 V AC, 2 A Overall width 6.2 mm sc

Manufacturer's No: 3RQ3052-1SM50     Manufacturer: Siemens
Output coupler Optocoupler 1 NO triac, Input 24 V DC Output 20-264 V AC, 2 A Overall width 6.2 mm sc

View 3D

Availability Back Order

£76.22
  • Optocoupler with 1 normally open triac output
  • Input: 24 V DC
  • Output: 20-264 V AC, 2 A
  • Overall width: 6.2 mm with screw terminal
  • Thermal current: 2 A

Accessories

Connecting comb 2-pole

Product Code - 3RQ39010A
Price £1.15
Back Order

Connecting comb 4-pole

Product Code - 3RQ39010B
Price £2.04
Back Order
Product video
Product video


Product

Manufacturer Material ID -
3RQ3052-1SM50
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
TN
Export Control Regulations -
N / N
Minimum Order Quantity -
5
UNSPSC -
39121529

Technical Specification

Nominal current -
- Ampere
Drive, polarization -
UN
Drive, switching attitude -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Number of contacts as normally closed contact -
-
Number of contacts as change-over contact -
-
Rated control supply voltage Us at DC -
11 Volt
Degree of protection (IP) -
IP20
Type of switch contact -
Other
Degree of protection (IP rating) -
IP20
Depth -
72.5 Millimetre
Height -
93 Millimetre
Number of contacts as normally open contact -
1
Rated control supply voltage at DC -
11 Volt
Type of electric connection -
Screw connection
Voltage type for actuating -
DC
Width -
6.2 Millimetre
With LED indication -

Availability Back Order

£76.22
