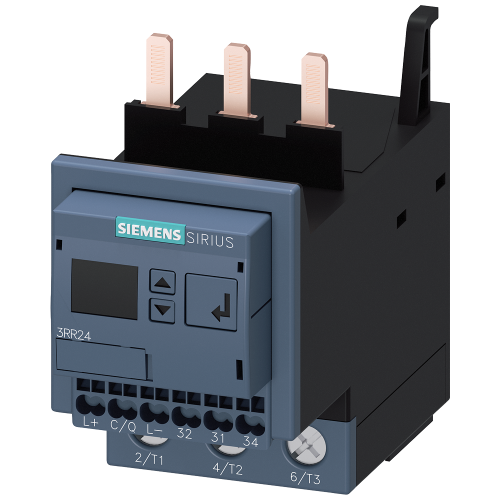

3RR24433AA40

Current monitoring relay for IO-Link, can be mounted to Contactor, 3RT2, Size S2 Apparant/active cur

Manufacturer's No: 3RR2443-3AA40     Manufacturer: Siemens
Current monitoring relay for IO-Link, can be mounted to Contactor, 3RT2, Size S2 Apparant/active cur

View 3D

Availability Back Order

£362.55
  • Apparant/active current monitoring: 8-80 A, 20-400 Hz, 3-phase
  • Supply voltage: 24 V DC
  • Monitoring for current overshoot, undershoot, asymmetry, phase failure, cable break, phase sequence, residual current
  • Blocking current, switching cycle, and operating hours counter
  • Warning and alarm thresholds
  • Auto-reset or manual reset
  • ON delay: 0-9999.9 s
  • OFF delay: 0-9999.9 s
  • Reclosing delay: 0-300 min
  • Mountable to Contactor 3RT2, Size S2

Read more

  • Spring-type connection system

Accessories

Product video
Product video


Product

Manufacturer Material ID -
3RR2443-3AA40
Net Weight -
0.24kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CZ
Export Control Regulations -
EAR99 / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Number of contacts as normally closed contact -
-
Number of contacts as normally open contact -
-
Number of contacts as change-over contact -
-
Rated control supply voltage Us at DC -
24 Volt
Rated control supply voltage at DC -
24 Volt
Voltage type for actuating -
DC
Current measurement range -
8 Ampere
Depth -
112 Millimetre
Height -
99 Millimetre
Max. permitted delay-on energization time -
999.9 Second
Max. permitted off-delay time -
999.9 Second
Min. adjustable delay-on energization time -
0 Second
Min. adjustable off-delay time -
0 Second
Three-phase over current possible -
Three-phase under current possible -
Type of electric connection -
Screw connection
Width -
55 Millimetre

Availability Back Order

£362.55
