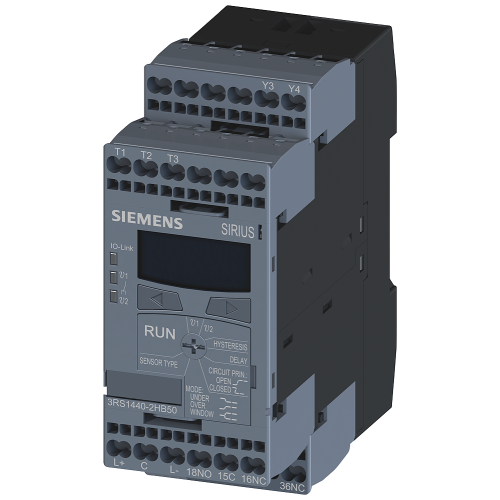

3RS14402HB50

Temperature monitoring relay for IO-Link Pt100/1000, KTY83/84, NTC 2 limit values

Manufacturer's No: 3RS1440-2HB50     Manufacturer: Siemens
Temperature monitoring relay for IO-Link Pt100/1000, KTY83/84, NTC 2 limit values

Availability On Request

POA
  • Temperature monitoring relay for IO-Link Pt100/1000, KTY83/84, NTC
  • Monitors temperature range: -50°C to 750°C
  • Supports 2 limit values
  • 3 x 1 CO relay output
  • Width: 45 mm
  • Features spring-type terminals

Follow-up article



Product

Manufacturer Material ID -
3RS1440-2HB50
Net Weight -
0.27kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CZ
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Temperature measuring range -
- Degrees celsius
Resistance measuring range -
- Ohm
Rated control supply voltage Us at DC -
18 Volt
Rated control supply voltage at DC -
18 Volt
Voltage type for actuating -
DC

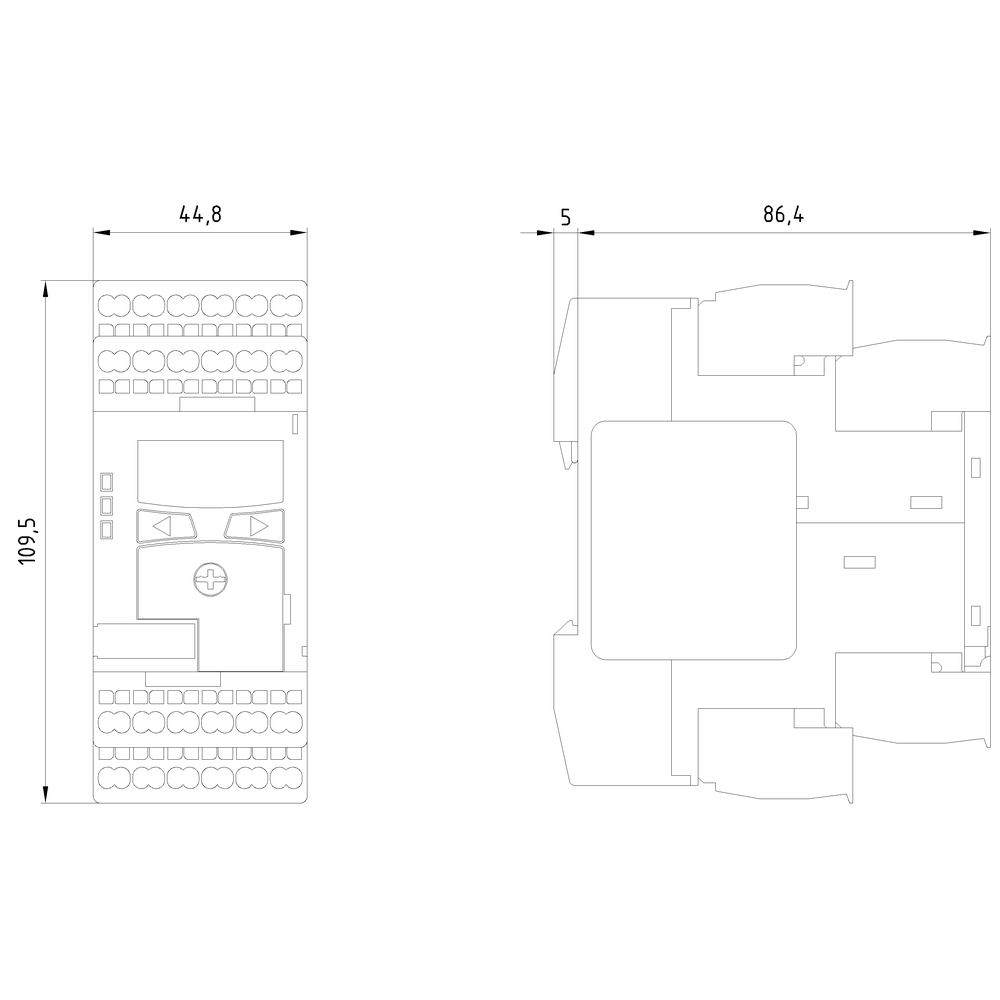

Depth -
91 Millimetre
Error registration possible -
External reset possible -
Height -
108 Millimetre
Number of contacts as change-over contact -
3
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of measuring circuits -
1
Type of electric connection -
Spring clamp connection
Width -
45 Millimetre

Availability On Request

POA
