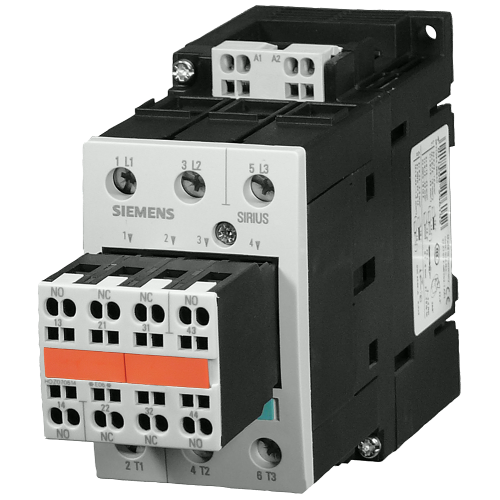

3RT10343BB443MA0

Power contactor, AC-3 32 A, 15kW / 400 V 24 V DC, 3-pole, Size S2 Spring-type terminal 2 NO + 2 NC,

Manufacturer's No: 3RT1034-3BB44-3MA0     Manufacturer: Siemens
Power contactor, AC-3 32 A, 15kW / 400 V 24 V DC, 3-pole, Size S2 Spring-type terminal 2 NO + 2 NC,

Availability On Request

POA
  • Power contactor
    • AC-3 32 A, 15 kW / 400 V, 24 V DC
    • 3-pole, Size S2
    • Spring-type terminal
    • 2 NO + 2 NC
  • Phased-out product
  • Successor: SIRIUS 3RT2
  • Preferred successor type is not specified


Product

Manufacturer Material ID -
3RT1034-3BB44-3MA0
Net Weight -
1.52kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated operation power NEMA -
- Kilowatt
Modular version -
Rated operation power at AC-3, 400 V -
15 Kilowatt
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Number of auxiliary contacts as normally open contact -
2
Number of auxiliary contacts as normally closed contact -
2
Rated operation current Ie at AC-3, 400 V -
32 Ampere
Rated operation current Ie at AC-1, 400 V -
50 Ampere
Rated control supply voltage Us at DC -
24 Volt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
DC
Rated operation current Ie at AC-4, 400 V -
29 Ampere
Rated operation power at AC-4, 400 V -
15 Kilowatt
