3RT10361BB443MA0

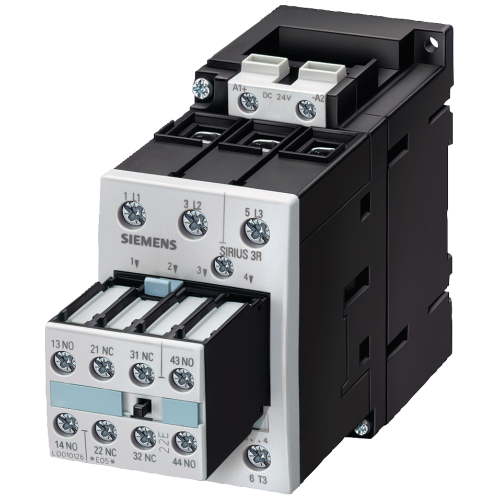

Power contactor, AC-3 50 A, 22kW / 400 V 24 V DC, 2 NO + 2 NC 3-pole, Size S2 Screw terminal Captiv

Manufacturer's No: 3RT1036-1BB44-3MA0     Manufacturer: Siemens
Power contactor, AC-3 50 A, 22kW / 400 V 24 V DC, 2 NO + 2 NC 3-pole, Size S2 Screw terminal Captiv

Availability On Request

POA

This product has been superseded by

3RT20361KB443MA0

Please check compatibility before purchasing.

  • Power contactor for AC-3 applications
  • 50 A current rating
  • 22 kW / 400 V power rating
  • 24 V DC control voltage
  • 3-pole contactor with 2 normally open (NO) and 2 normally closed (NC) contacts
  • Size S2 with screw terminal connections
  • Captive auxiliary switch for SUVA applications
  • Phased-out product, successor is SIRIUS 3RT2
  • Preferred successor type: 3RT2036-1KB44-3MA0


Product

Manufacturer Material ID -
3RT1036-1BB44-3MA0
Net Weight -
1.50kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Rated operation power NEMA -
- Kilowatt
Modular version -
Rated operation power at AC-3, 400 V -
22 Kilowatt
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Number of auxiliary contacts as normally open contact -
2
Number of auxiliary contacts as normally closed contact -
2
Rated operation current Ie at AC-3, 400 V -
50 Ampere
Rated operation current Ie at AC-1, 400 V -
60 Ampere
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
DC
Rated operation current Ie at AC-4, 400 V -
41 Ampere
Rated operation power at AC-4, 400 V -
22 Kilowatt

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

3RT20361KB443MA0

Please check compatibility before purchasing.
