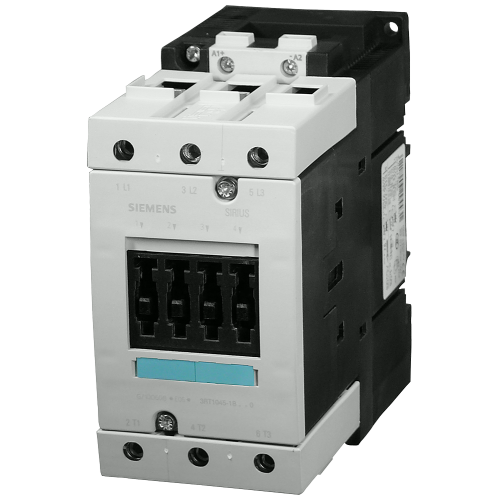

3RT10461BB40

Power contactor, AC-3 95 A, 45kW / 400 V 24 V DC, 3-pole, Size S3 Screw terminal !!! Phased-out pro

Manufacturer's No: 3RT1046-1BB40     Manufacturer: Siemens
Power contactor, AC-3 95 A, 45kW / 400 V 24 V DC, 3-pole, Size S3 Screw terminal !!! Phased-out pro

Availability On Request

POA

This product has been superseded by

3RT20461KB40

Please check compatibility before purchasing.

  • Power contactor
  • AC-3 95 A
  • 45 kW / 400 V
  • 24 V DC control voltage
  • 3-pole
  • Size S3
  • Screw terminal
  • Phased-out product
  • Successor: SIRIUS 3RT2
  • Preferred successor type: 3RT2046-1KB40

Follow-up article

Question and Answer (Q&A video)
Instructional video
Presentation video
Product video
Presentation video
Instructional video


Product

Manufacturer Material ID -
3RT1046-1BB40
Net Weight -
2.86kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated operation power NEMA -
- Kilowatt
Rated control supply voltage Us at DC -
24 Volt
Modular version -
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Rated control supply voltage at DC -
24 Volt
Rated operation current Ie at AC-1, 400 V -
120 Ampere
Rated operation current Ie at AC-3, 400 V -
95 Ampere
Rated operation current Ie at AC-4, 400 V -
80 Ampere
Rated operation power at AC-3, 400 V -
45 Kilowatt
Rated operation power at AC-4, 400 V -
45 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
DC

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

3RT20461KB40

Please check compatibility before purchasing.
