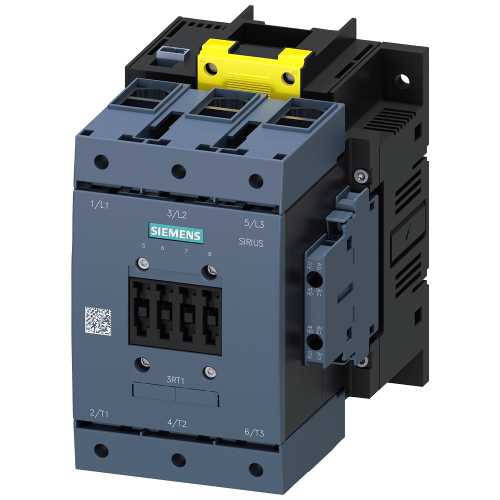

3RT10541SF36

Contactor, AC-3e, 115 A/55 kW/400 V, 3-pole, 96-127 V AC/DC, F-PLC-IN, 2 NO+2 NC, box terminal/screw terminal

Manufacturer's No: 3RT1054-1SF36     Manufacturer: Siemens
Contactor, AC-3e, 115 A/55 kW/400 V, 3-pole, 96-127 V AC/DC, F-PLC-IN, 2 NO+2 NC, box terminal/screw terminal

View 3D

Availability Back Order

£559.40
  • Power contactor for AC-3e/AC-3 applications
  • Rated at 115 A, 55 kW / 400 V
  • Suitable for AC (50-60 Hz) and DC with Uc: 96-127 V x (0.8-1.1)
  • F-PLC input at 24 V DC
  • 3-pole contactor with 2 NO + 2 NC auxiliary contacts
  • Electronic drive with box terminal for main circuit
  • Screw terminal for control and auxiliary circuit

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.22
Back Order

Spare part

Question and Answer (Q&A video)
Instructional video
Presentation video
Product video
Product video
Product video
Presentation video
Instructional video


Product

Manufacturer Material ID -
3RT1054-1SF36
Net Weight -
3.64kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

Number of normally closed contacts as main contact -
-
Rated control supply voltage Us at AC 50HZ -
96 Volt
Rated control supply voltage Us at AC 60HZ -
96 Volt
Rated control supply voltage Us at DC -
96 Volt
Modular version -
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2
Number of main contacts as normally open contact -
3
Rated control supply voltage at AC 50 Hz -
96 Volt
Rated control supply voltage at AC 60 Hz -
96 Volt
Rated control supply voltage at DC -
96 Volt
Rated operation current Ie at AC-1, 400 V -
160 Ampere
Rated operation current Ie at AC-3, 400 V -
115 Ampere
Rated operation current Ie at AC-4, 400 V -
97 Ampere
Rated operation power at AC-3, 400 V -
55 Kilowatt
Rated operation power at AC-4, 400 V -
55 Kilowatt
Rated operation power NEMA -
73.549875 Kilowatt
Type of electrical connection of main circuit -
Frame clamp
Voltage type for actuating -
AC/DC

Availability Back Order

£559.40
