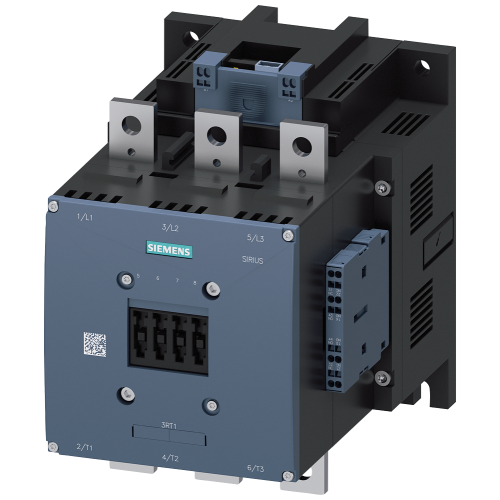

3RT10752NF36

Contactor, AC-3e, 400 A/200 kW/400 V, 3-pole, 96-127 V AC/DC, PLC-IN optional, 2 NO+2 NC, connection bar/spring-type terminal

Manufacturer's No: 3RT1075-2NF36     Manufacturer: Siemens
Contactor, AC-3e, 400 A/200 kW/400 V, 3-pole, 96-127 V AC/DC, PLC-IN optional, 2 NO+2 NC, connection bar/spring-type terminal

Availability On Request

£1,908.86
  • Power contactor for AC-3 applications
  • Rated at 400 A, suitable for 200 kW / 400 V AC (50-60 Hz) or DC with Uc of 96-127 V
  • PLC input at 24 V DC
  • 3-pole contactor with 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts
  • Electronic drive with busbar main circuit and spring-loaded terminal for control and auxiliary circuit

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.23
On Request
Price £0.02
On Request

Spare part

Question and Answer (Q&A video)
Instructional video
Presentation video
Product video
Product video
Product video
Presentation video
Instructional video


Product

Manufacturer Material ID -
3RT1075-2NF36
Net Weight -
10.35kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

Number of normally closed contacts as main contact -
-
Rated control supply voltage Us at AC 50HZ -
96 Volt
Rated control supply voltage Us at AC 60HZ -
96 Volt
Rated control supply voltage Us at DC -
96 Volt
Modular version -
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2
Number of main contacts as normally open contact -
3
Rated control supply voltage at AC 50 Hz -
96 Volt
Rated control supply voltage at AC 60 Hz -
96 Volt
Rated control supply voltage at DC -
96 Volt
Rated operation current Ie at AC-1, 400 V -
430 Ampere
Rated operation current Ie at AC-3, 400 V -
400 Ampere
Rated operation current Ie at AC-4, 400 V -
350 Ampere
Rated operation power at AC-3, 400 V -
200 Kilowatt
Rated operation power at AC-4, 400 V -
200 Kilowatt
Rated operation power NEMA -
220.649625 Kilowatt
Type of electrical connection of main circuit -
Rail connection
Voltage type for actuating -
AC/DC

Availability On Request

£1,908.86
