3RT14566NF36

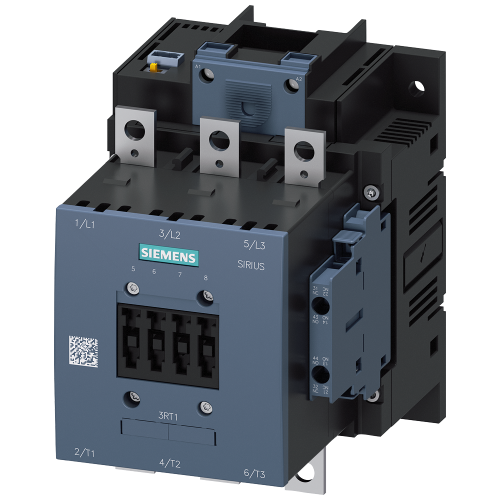

Power contactor, AC-1 275 A, 400 V AC/DC operation 96-127 V UC, Auxiliary contacts 2 NO + 2 NC, 3-po

Manufacturer's No: 3RT1456-6NF36     Manufacturer: Siemens
Power contactor, AC-1 275 A, 400 V AC/DC operation 96-127 V UC, Auxiliary contacts 2 NO + 2 NC, 3-po

View 3D

Availability Back Order

£577.96
  • Power contactor for AC-1 applications
  • Rated at 275 A and 690 V
  • Operating temperature of 40°C
  • 3-pole configuration
  • Control voltage: 96-127 V AC (50-60 Hz) / DC
  • PLC input: 24 V DC
  • Electronic auxiliary drive with 2 NO + 2 NC contacts
  • Main circuit connection via busbar
  • Control and auxiliary circuit connection via screw terminals

Accessories

Spare part

Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Instructional video
Presentation video
Product video
Presentation video
Instructional video


Product

Manufacturer Material ID -
3RT1456-6NF36
Net Weight -
3.33kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
UNSPSC -
39121529

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
96 Volt
Rated control supply voltage Us at AC 60HZ -
96 Volt
Rated control supply voltage Us at DC -
96 Volt
Modular version -
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Rated control supply voltage at AC 50 Hz -
96 Volt
Rated control supply voltage at AC 60 Hz -
96 Volt
Rated control supply voltage at DC -
96 Volt
Rated operation current Ie at AC-1, 400 V -
275 Ampere
Rated operation current Ie at AC-3, 400 V -
97 Ampere
Rated operation power NEMA -
55.16240625 Kilowatt
Type of electrical connection of main circuit -
Rail connection
Voltage type for actuating -
AC/DC

Availability Back Order

£577.96
