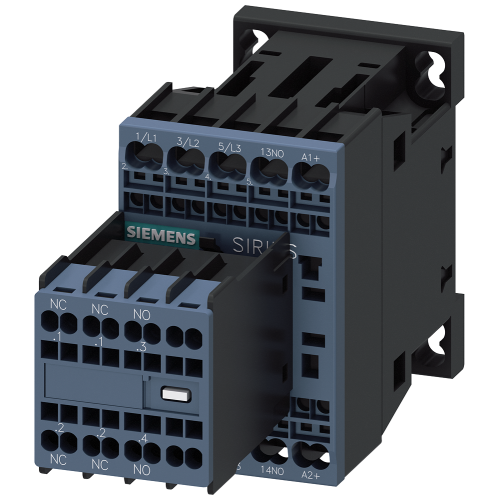

3RT20162BB44

Power contactor, AC-3 9 A, 4kW / 400 V 2 NO + 2 NC, 24 V DC, 3-pole, Size S00 Spring-type terminal

Manufacturer's No: 3RT2016-2BB44     Manufacturer: Siemens
Power contactor, AC-3 9 A, 4kW / 400 V 2 NO + 2 NC, 24 V DC, 3-pole, Size S00 Spring-type terminal

View 3D

Availability Back Order

£52.56
  • Power contactor for AC-3e/AC-3 applications
  • 9 A current rating
  • 4 kW power rating at 400 V
  • 3-pole configuration
  • Coil voltage: 24 V DC
  • 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts
  • Spring-loaded terminals
  • Size: S00
  • Removable auxiliary switch

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.22
Back Order
Question and Answer (Q&A video)
Presentation video
Question and Answer (Q&A video)
Product video
Product video
Instructional video


Product

Manufacturer Material ID -
3RT2016-2BB44
Net Weight -
0.37kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Number of normally closed contacts as main contact -
-
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at DC -
24 Volt
Modular version -
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2
Number of main contacts as normally open contact -
3
Rated control supply voltage at DC -
24 Volt
Rated operation current Ie at AC-1, 400 V -
22 Ampere
Rated operation current Ie at AC-3, 400 V -
9 Ampere
Rated operation current Ie at AC-4, 400 V -
8.5 Ampere
Rated operation power at AC-3, 400 V -
4 Kilowatt
Rated operation power NEMA -
3.67749375 Kilowatt
Type of electrical connection of main circuit -
Spring clamp connection
Voltage type for actuating -
DC
